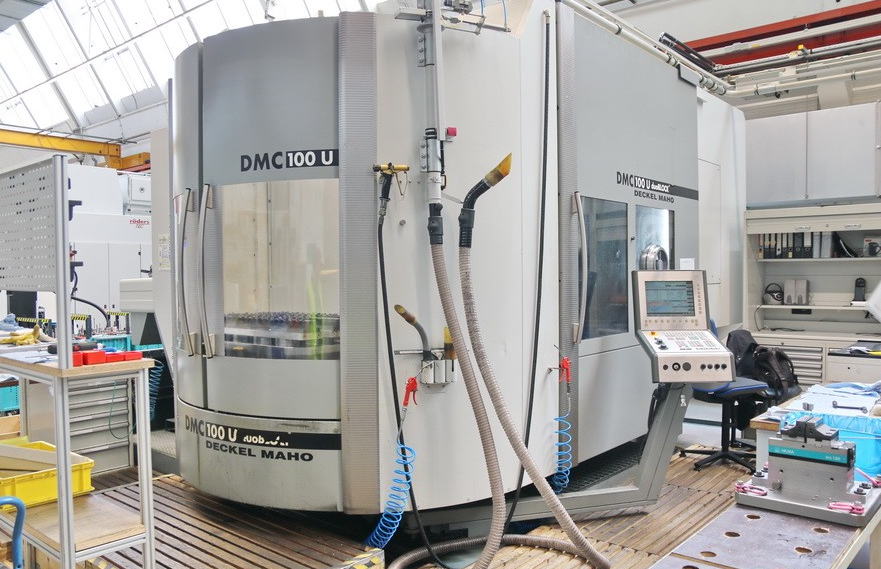

Deckel Maho DMC 100 U duoBLOCK 5 Axis

DECKEL MAHO DMC 100 U duoBLOCK
Year 2005

Control 840 D Siemens
Other information 5 Axis

- CNC Machining Center Universal DECKEL MAHO
- DMC 100 U duoBLOCK
- Swivel-Milling-Head (B-Achse)
- NC-Rotary (C-Axis)
- pallet changer
- 180-pos. tool-changer
- WITHOUT zero point clamping system
- WITHOUT RINGLER exhaust
- WITHOUT tools

Technical Details
x-travel 1.000 mm
y-travel 1.000 mm
z-travel 1.000 mm
Control 840 D Siemens
Main spindle:
turning speed range - main spindle 20 - 18.000 min/-1
power capacity - main spindel 28 / 19 kW
max. Torque 121 Nm
tool taper HSK-A63

NC-Swivle milling head:
swivellable B: -30 / +180 °
swivle time 1,2 s

pallet changer:
numbers of pallets 2
size of pallet 1.000 x 800 mm
max. workpiece weight 1.500 kg
rotatable C: 360 °

tool magazin:
number of toolpositions 180 pos.
total power requirement 78 kVA
weight of the machine ca. 27,0 t
dimensions of the machine ca. 8,0 x 7,0 x 3,4 m

Accessories
Automatic Tool Changer
Chip conveyor
Coolantsystem
Documents
elektr. hand wheel
full splash guard
pallet changer
Rotary screen
through spindle coolant
