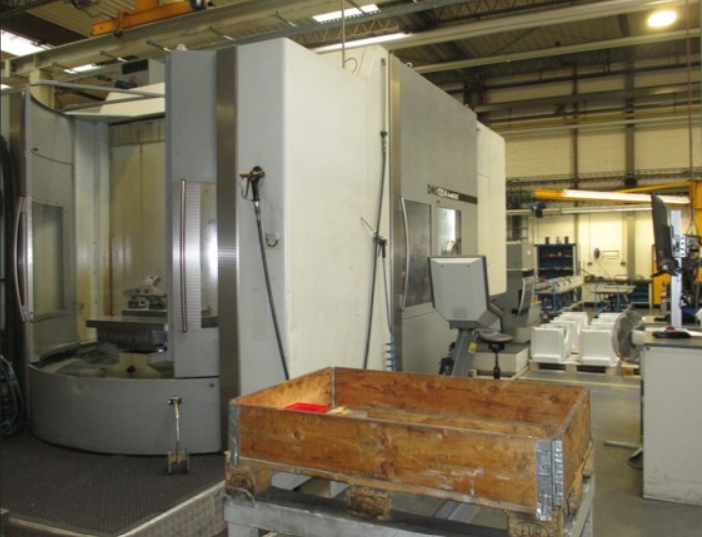

Deckel Maho DMC125H duoBLOCK 4 Axis

X travel: 1,250 mm
Y travel: 1,000 mm
Z travel: 1,000 mm
C axis (table): 360° × 0.001°
Feed rate X/Y/Z: 20–10,000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Control: Siemens SINUMERIK 840D Powerline
Spindle speed: 20–8,000 rpm
Gearbox stage 1: 20–1,400 rpm
Gearbox stage 2: 1,400–8,000 rpm
Spindle taper: SK50
Spindle power (100% duty): 32 kW
Spindle power (40% duty): 44 kW
Maximum torque (40% / 100% duty): 1,214 / 827 Nm
Table size: 800 × 800 mm
Table load capacity: 1.5 t
Tool magazine capacity: 240 tools
Maximum tool diameter: 110 mm
Maximum tool diameter (with 2 vacant positions): 230 mm
Maximum tool length: 500 mm
Pallet changer
Operating mode 4
Rack-type tool magazine
980 L belt filter system
Chip conveyor
Coolant through spindle
