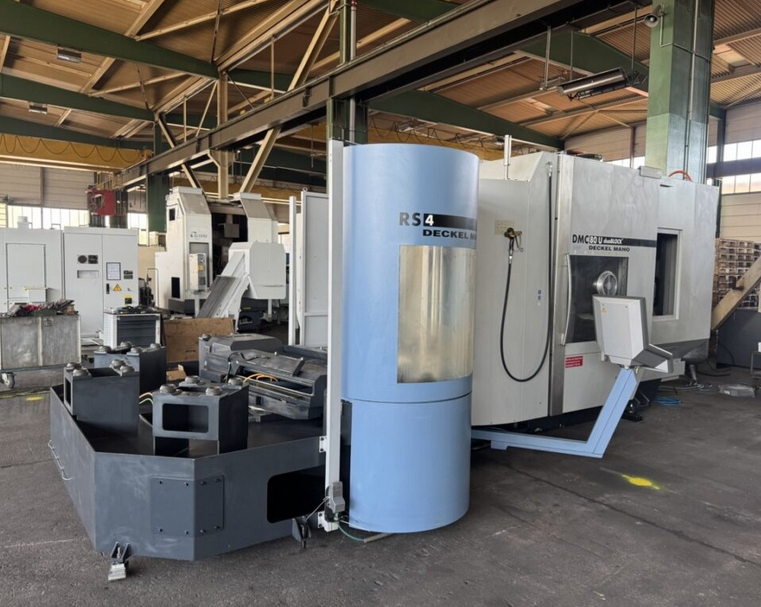

Deckel Maho DMC80U duoBLOCK 5 Axis

X-axis travel: 800 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm
B-axis: -10° to +180°
C-axis: 360° × 0.001°
Feed rate X/Y/Z: 20 – 10,000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Feed rate B-axis: 1 – 10,800 °/min
Rapid traverse B-axis: 30 rpm
Control: Siemens Sinumerik 840D
Coolant system with temperature control
Coolant through spindle: 40 – 80 bar
Air through spindle
Tool cone cleaning device
Mechanical tool breakage control
Renishaw workpiece measurement
Electronic handwheel
Spindle speed: 20 – 18,000 rpm
Spindle power at 40% load: 28 kW
Spindle power at 100% load: 19 kW
Max spindle torque: 121 / 82 Nm
Spindle taper: HSK-A63
Pallet size: 800 × 630 mm
Max workpiece diameter: 800 mm
Max workpiece height: 1,330 mm
Table load capacity: 1.2 t
Chain tool magazine: 180 tools

5-axis machining center
RS4 pallet storage
Chip conveyor
Machine without pallets
