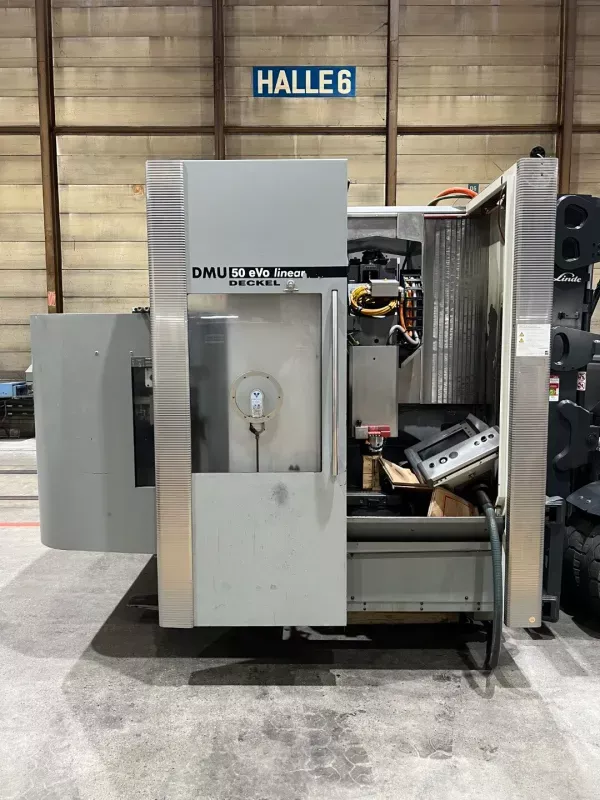

Deckel Maho DMU 50 eVo Linear 5 Axis

X-Axis Travel: 500 mm
Y-Axis Travel: 450 mm
Z-Axis Travel: 400 mm
B-Axis Travel: 0° to 161.955°
C-Axis Travel: nx 360°
Rapid Traverse Y, Z: 50 m/min
Rapid Traverse X: 80 m/min
B-Axis Speed: 40 rpm
C-Axis Speed: 50 rpm
Resolution C, B, X, Y, Z: 0.001 mm
Position Tolerance C, B, X, Y, Z: 0.010 mm

Control: Heidenhain iTNC 530
Tool Breakage Control
Blum Measuring Probe
Oil Mist Separator
Fire Extinguishing System
High-Pressure Pump and Belt Filter System
Chip Conveyor
Spindle Speed Continuously Programmable: 18,000 rpm
Spindle Speed in Setup Mode: 20–800 rpm
Spindle Taper: HSK-A63
Tool Clamping: Hydraulic
Tool Magazine Capacity: 120

Max Tool Diameter Without Free Spaces: 80 mm
Max Tool Diameter With Free Spaces: 130 mm
Max Tool Length from Spindle Nose: 300 mm
Max Tool Weight: 6 kg

NC Rotary Table Clamping Surface: 500 x 380 mm
T-Slot Distance/Size: 63 / 14 H7
Center Hole: 30 H6
Max Torque C-Axis: 1491 Nm
Max Table Rotation: 50 rpm
Max Swivel Torque B-Axis: 1864 Nm
B-Axis Swivel Range: 0°–161.955°
B-Axis Resolution: 0.001°

Rotary Table Weight: 420 kg
Max Table Load: 200 kg
Machine Weight: Approx. 6800 kg
Installation Weight: Approx. 7500 kg
Machine Dimensions: 4170 x 3133 x 2560 mm
