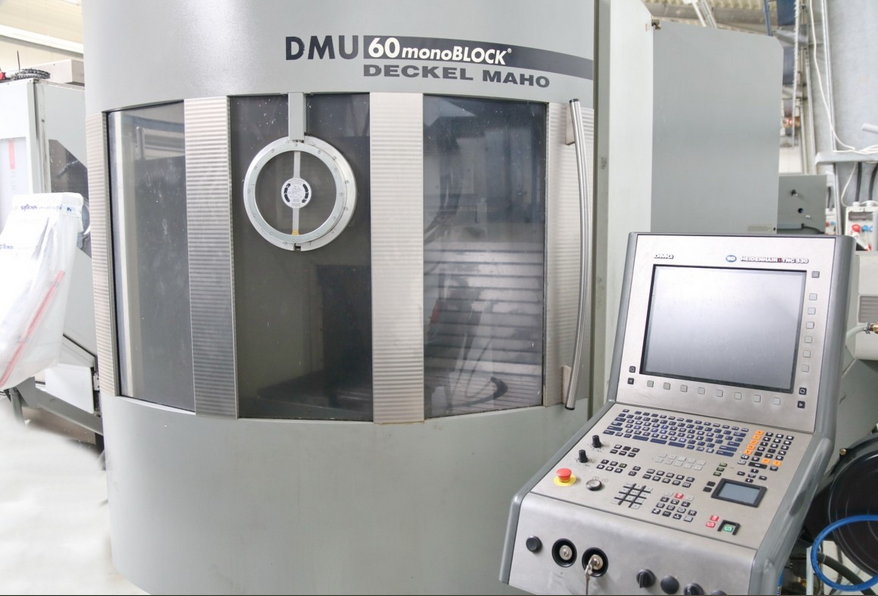

Deckel Maho DMU 60 monoBLOCK 3 Axis

DECKEL MAHO DMU 60 monoBLOCK
Year: 2007

X travel 730 mm
Y travel 560 mm
Z travel 560 mm

Control iTNC 530 Heidenhain
Max spindle speed 18000 rpm
Main spindle power 10 / 15 kW
Max torque 130 / 87 Nm
Tool taper HSK-A63
Spindle swivel range +30 / -120°
Table surface area 1000 x 600 mm
T-slots 9x 14 x 63 mm
Rotary table diameter 600 mm
Rotary table rotation C: 360°
Max table load 500 kg
Tool magazine capacity 60 positions
Total power requirement 40 kVA
Machine weight approx. 11 t
Machine dimensions approx. 4.5 x 4.5 x 3.5 m
3D quickSET
Air blow through spindle center
Chip conveyor
Coolant system
Documentation
Electronic handwheel iTWC 530
High pressure coolant 20 bar
NC rotary table
Oil dust skimmer
Operation mode 4
Paper band filter
Production package
Rotary screen
4-color signal lamp
Spray gun
Test probe TS 640 Heidenhain
Tool setting BLUM Laser
Turning milling head NC
