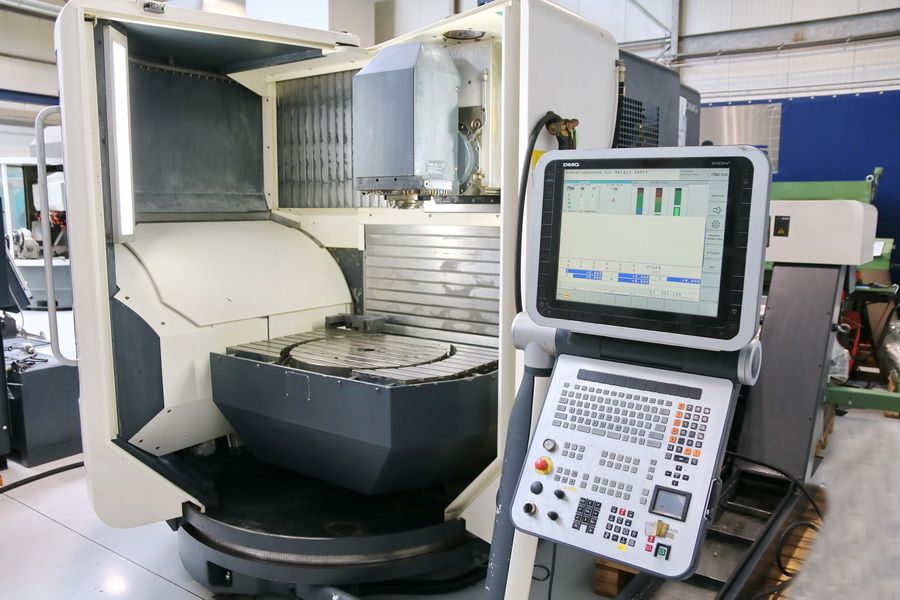

Deckel Maho DMU 60 monoBLOCK 843 4 Axis

X-axis travel: 630 mm
Y-axis travel: 560 mm
Z-axis travel: 560 mm

Control: iTNC 530 Heidenhain
Spindle speed range: up to 12,000 rpm
Spindle power: 10 / 15 kW
Max torque: 130 / 87 Nm
Tool taper: HSK-A 63

Swiveling milling head: +30° / -120°
NC rotary table surface: 1000 x 600 mm
Table diameter: 600 mm
Table load capacity: 500 kg
C-axis rotation: 360°
T-slots: 1x 14 H7, 8x 14 H12

Tool magazine capacity: 2 x 12 (24) positions
Max tool diameter: 80 mm
Max tool diameter (free space): 130 mm
Max tool weight: 8 kg
Max tool length: 315 mm

Total power requirement: 45 kVA
Accessories: chip conveyor, coolant system, electric handwheel, exhaust fan, probe system (Heidenhain TS 649), tool monitoring (Blum Laser), spray gun, operation mode 4

Machine weight: 6.8 t
Machine dimensions: 4.5 x 4.5 x 2.5 m
