DEF 100 BLUE TOUCH

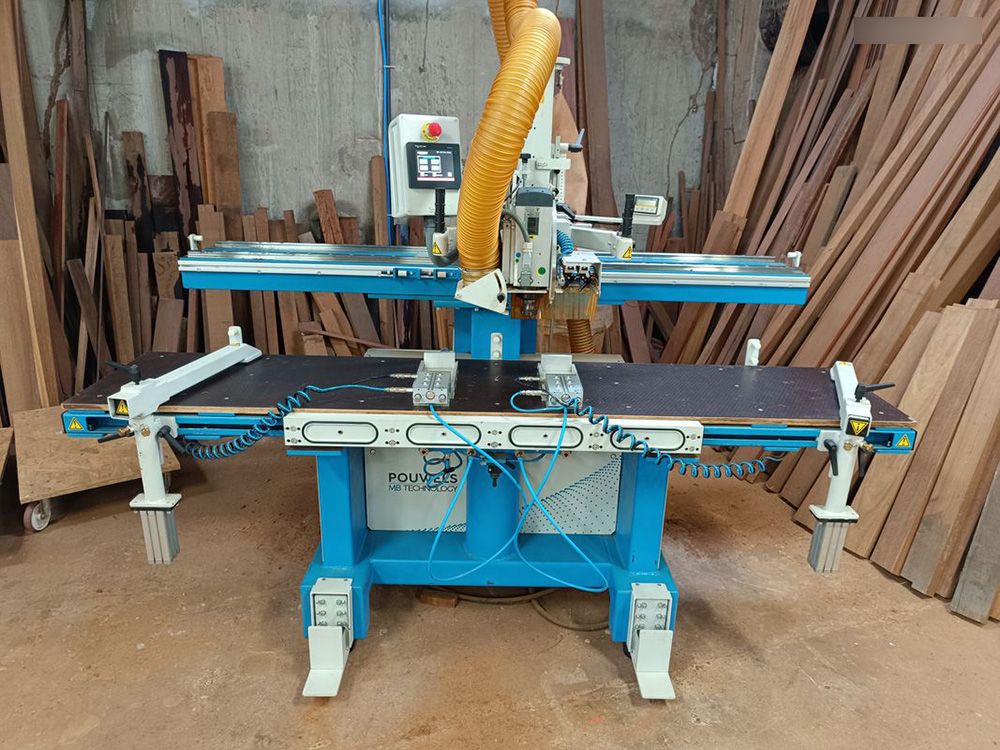

DEF 100 BLUE TOUCH DEF 100 BLUE TOUCH router, like new, 10 hours of use
Sold with a mobile dust extraction system.
Rottes 3 treads and 3 risers.
Fixed head.
Rotating table from -65° to +65°.
Tiltable motor from 0 to 90°.
Variable speed from 0 to 18,000 RPM.
900mm longitudinal travel (Y-axis).
1100mm horizontal travel (X-axis).
3 adjustable stops for tread thickness (30/50mm).
One pneumatic Y-axis stop for riser thickness.
One mechanical Y-axis stop for tread length.
Double laser guide for bit thickness (Y-axis travel).
One tracking laser mounted on the carriage (Y-axis travel). X »
Pneumatic lowering of the milling motor
Depth adjustment via a slide with a 4-position rotary encoder

2 pneumatic cylinders for clamping stringers
Machine supplied with a 16mm solid carbide drill bit and collet for a 16mm shank 100mm dust extraction hood with integrated blower
Machines certified and compliant with European Standards
Machine powered by 3 x 400 V + N + T
Pneumatic supply: 6 bar
Machine weight: 985 kg
Interactive touchscreen control
including the following features:
Manual, Auto, and Parameter modes
Electronic motor speed control
Automatic laser shut-off, ECO mode
Joystick control settings
Continuous rotation mode
Interactive on-screen help
Troubleshooting assistance via internet connection
PACK 2 configuration:
Def 100 Blue touch Stairs

Doors Including:
Horizontal travel of 2,000 mm on the X-axis
Tiltable motor from 0 to 90°
Digital display on the tiltable motor
Second laser guide mounted on the carriage for X-axis movement
Pneumatic copying finger
16 m³/h vacuum table for holding workpieces

Including:
4 suction cups, 160 x 40 mm
1 set of pneumatic clamps for posts with an opening of 60 to 160 mm
Vacuum clamping system on the front of the machine
Automatic pneumatic depth control system on the Z-axis (doors)

Equipped with:
6 kW variable speed ER32 router motor from 0 to 18,000 rpm
ER32 collet set from 2 to 16 mm
Drill bit set from 8 to 16 mm
