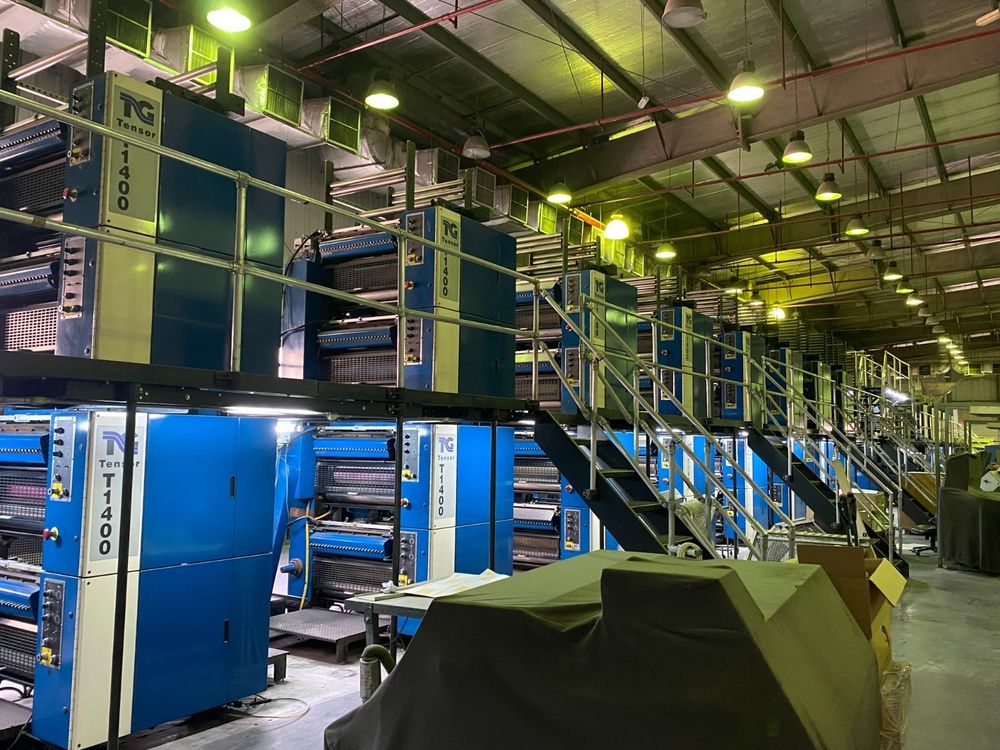

DEV, Tensor T 1400 (578)

Cut-off: 578 mm
Max. web width: 960 mm
Remote Inking
Brush Dampening
Motorized Register, 1 Web of Heatset
2 x Tensor H-50 Heavy-Duty Jaw Folder
Quarter-folder
16 Web capacity
1:2:2 Folder geometry
Reelstands
18 x MEGTEC 134050SE Zero Speed Automatic Splicers
Maximum Web Width: 40 inches
Operating Speed: 1300 fpm
Roll Diameter Capacity: 45 inches
Maximum Roll Weight Capacity: 2,500 lbs
SE Series Zero Speed Splicers
17 x Tensor compact infeeds
Twelve of the Towers are driven by a mechanical shaft
Three of the Towers are driven by a unit shaftless drive system.<
3 x operating consoles
Baldwin dampening systems
4 x Baldwin Basic Liner 10.0
4 x Baldwin model 226D
EPG computer ink key control system
Bay Window
Coanda Plus 195 (5.0m) Web Drying System with 4-12” roll chill stands
Chill Roll Stands
WPC silicone applicator and E & L web guide mounted on the chill
Betz Ink Supply System
20 million impressions
