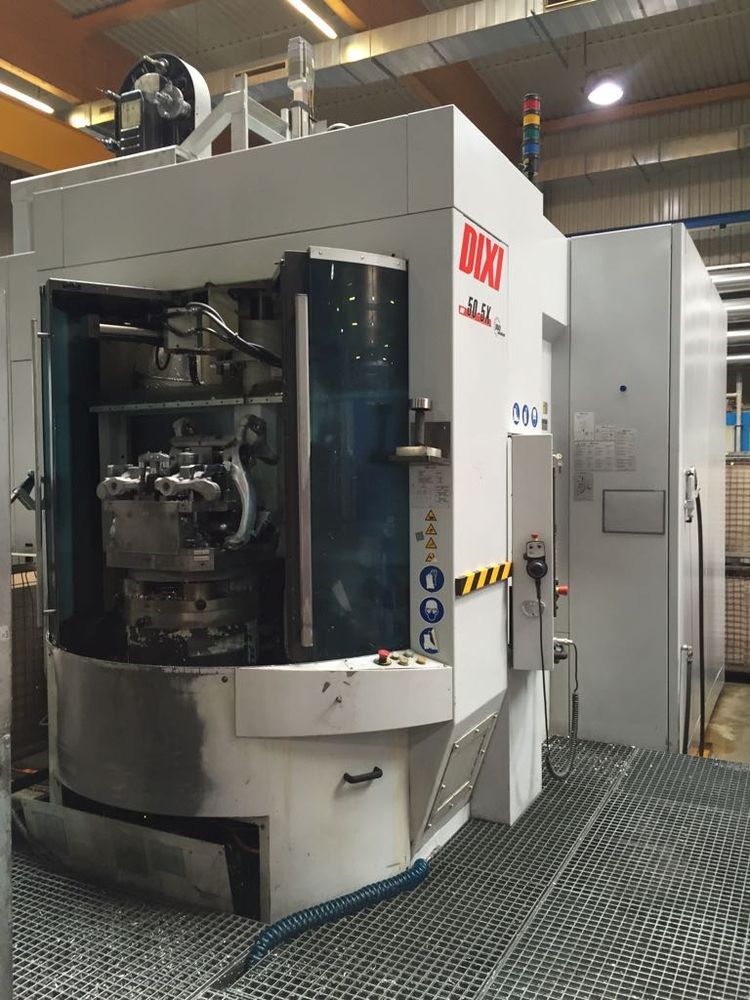

Dixi DHP-50-5X-SIEMENS 840D-ATC60-APC2-CE-

Travel - Axes stroke: 700 x 700 x 700 mm

Working area: Dia. 700 x H 800 mm

Rapid traverse: X, Y, Z 60 m/min

B-Axis with Torque motor: 50 RPM

Pallet sizes: 500 x 500 mm

Permissible pallet load: 800 kg

Spindle speed: 12,000 RPM

Spindle power: 33.5 HP / 25 kW

Torque: 215 Nm (Newton meters)

Spindle taper: ISO 50 Big-Plus

Number of pallets: 2

Tool magazine capacity (ATC): 65 tools

Control unit: CNC Siemens 840 D

Coolant: Through-spindle (TSC)

Overall dimensions: Length 5.247 m / Width 2.730 m / Height 2.700 m

Weight: 18,000 kg (18 metric tons)
