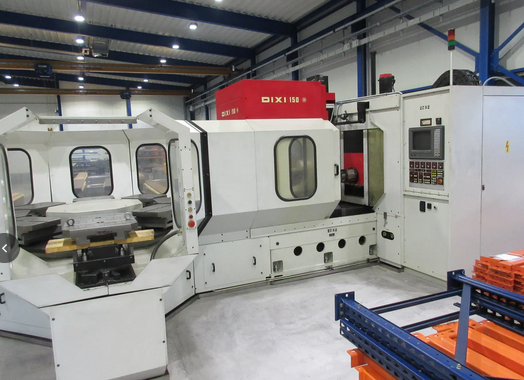

Dixi DPC 150 4 Axis

X-Axis Travel 700 mm
Y-Axis Travel 500 mm
Z-Axis Travel 700 mm
Table Division B 360,000 x 0.001°
Table Speeds Up to 15 t/min
Pallets Number 9
Pallet Length 500 mm
Pallet Width 400 mm
Pallet Transport Weight 500 kg
Tool Magazine 144 Positions (2x72)
Max Tool Weight 12 kg
Spindle Nose ISO 40
Spindle Speeds 40-10,000 t/min
Feeds X-Axis 1-10,000 mm/min
Feeds Y-Axis 1-10,000 mm/min
Feeds Z-Axis 1-10,000 mm/min
Rapid Traverse 15 m/min
Voltage 3x380 V 50 Hz
Spindle Motor 15 kW
Total Power 55 kW
Total Power 65 kVA
Machine Weight 11,000 kg
Overall Dimensions Length 6840 mm
Overall Dimensions Width 3400 mm
Overall Dimensions Height 3000 mm
Full Splash Cabin
Coolant System
Coolant Through Spindle
Pallet Changer
Set of Toolholders
Set of Cutter Arbors
