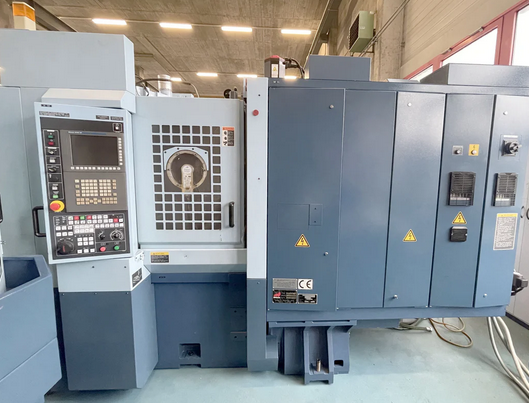

Matsuura H. PLUS 300 4 Axis

X-Axis Travel: 500 mm
Y-Axis Travel: 500 mm
Z-Axis Travel: 500 mm

B-Axis: 1°
C-Axis: 1°

Pallet System: 2 pallets
Pallet Size: 300 × 300 mm
Pallet Capacity: 10 pallets total system
Max Workpiece Weight: 250 kg
Pallet Change Time: 7 s

Spindle Taper: BT40
Spindle Speed: 50 – 15,000 rpm
Spindle Power: 15 / 22 kW
Max Torque: 95.4 Nm
Distance Spindle Nose to Table: 80 – 580 mm

Feed Rate: 1 – 50,000 mm/min
Rapid Traverse: 50 m/min

Tool Magazine Capacity: 90 tools
Max Tool Diameter: 80 mm
Max Tool Diameter (adjacent pockets free): 150 mm
Max Tool Length: 300 mm
Max Tool Weight: 8 kg
Tool Change Time: 2 s
Chip-to-Chip Time: 2.9 s

Control: Matsuura G-Tech 30i
Coolant System: 1500 L
Chip Conveyor
Spindle Oil Cooler
High Pressure Coolant Device
Tool Holders Set

Machine Weight: 7000 kg
Machine Dimensions: 3660 × 2463 × 2445 mm
