DMG CELOS CNC Control 4,000 RPM MORI NLX 2500SY/700 LATHE W/ MILLING, SUB AND Y 5 Axis

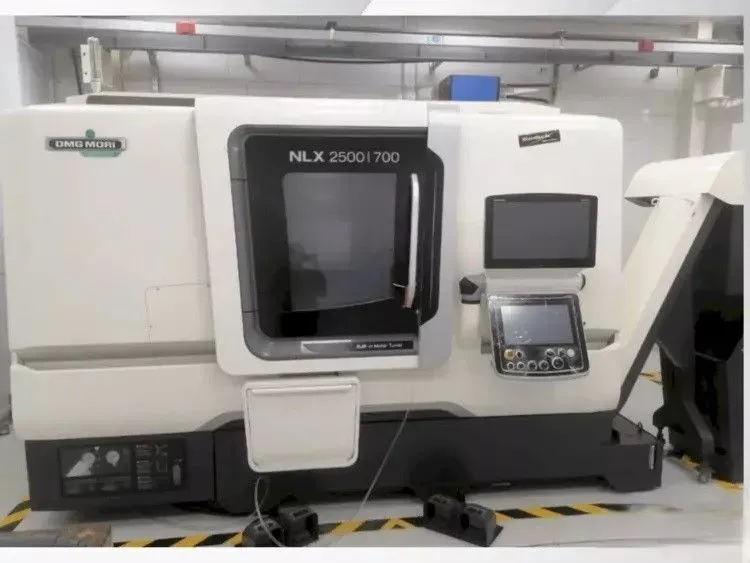

DMG MORI NLX 2500SY/700 LATHE W/ MILLING, SUB AND Y
2021

Maximum Swing: 23.2"
Max Turning Diameter: 18.1"
Main Spindle Bore: 3.58"
Max Bar Capacity: 3.1"
Sub Spindle: Yes
Maximum Swing Over Cross Slide: 29.72"
Distance Between Centers: 28.7"
Maximum Cutting Length: 27.75"
X-Axis Travel: 10.24"
Z-Axis Travel: 31.3"
Y-Axis Travel: 3.9" ± 2"
C-Axis Indexing: 0.001°
W-Axis Travel (Sub Spindle): 28.9"
Main Spindle Chuck Size: 10"
Main Spindle Chuck Type: Hydraulic
Main Spindle Speed: 4,000 RPM
Main Spindle Horsepower (Continuous/30 min): 25 / 22 HP
Sub Spindle Chuck Size: 8"
Sub Spindle Chuck Type: Hydraulic
Sub Spindle Speed: 6,000 RPM
Sub Spindle Horsepower (Continuous/30 min): 15 / 10 HP
Main & Sub Spindle Synchronization: Yes
Number of Turrets: 1
Turret Tool Positions: 12
Turret Rotary Tool Spindle Speed: 10,000 RPM
Turret Rotary Tool Horsepower: 7.0 HP
Bar Feed: No
Parts Catcher: Yes
Chip Conveyor: Yes
Chip Conveyor Type: Side Exit
Tool Eye (Auto Front Spindle): No
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Y-Axis: 394 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Control: CELOS CNC
Dimensions (LxWxH): 174" x 93" x 87"
Weight: 17,500 lbs

CELOS CNC Control
USB Port
PC/MCIA Interface
MAPPS III Programming
C-Axis Live Tooling
Y-Axis Live Tooling
Programmable Sub Spindle
10" Hydraulic Chuck on Main Spindle (Kitagawa)
8" Hydraulic Chuck on Sub Spindle (Kitagawa)
Built-In Milling Spindle Motor
Miscellaneous Tool Holders
Manual Tool Presetter
Hinge-Type Chip Conveyor
