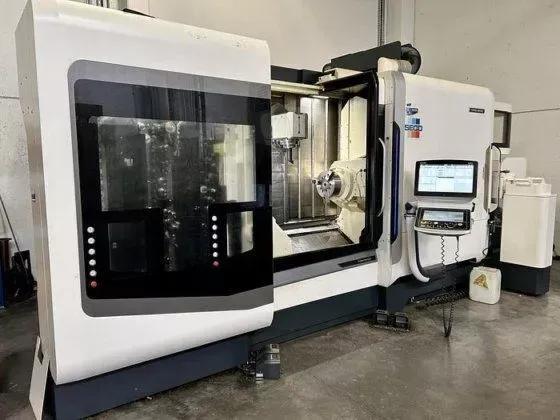

DMG CELOS with Fanuc 31i-B5 CNC 4000 rpm MORI NTX 2500S2 / 1500 7 Axis

X1 axis travel: 26.5"
Z1 axis travel: 67.8"
Y1 axis travel: 11.2"
W axis (sub spindle) travel: 60.7"
Rapid traverse X1: 1574 ipm
Rapid traverse X2: 787 ipm
Rapid traverse Z1: 1968 ipm
Rapid traverse Z2: 1417 ipm
Rapid traverse Y1: 1574 ipm

B axis head travel: ±120°
B axis indexing: 0.0001°
C axis

Control system: CELOS with Fanuc 31i-B5 CNC
CELOS MAPPS operating system
Direct scale feedback X, Y, Z
In-machine workpiece measuring system
Renishaw RMP probe
Multi-axis inspection software
Automatic tool presetter
Automatic door
Signal lamp
Chip conveyor
High pressure coolant system: 1000 psi
Coolant filtration unit
Programmable servo steady rest
Ethernet interface
Workpiece unloader
Workpiece conveyor
Coolant gun
Air blow for sub spindle
Mist collector system
Robot interface
Safety fence interface
Bar feeder interface
Manual pulse generator
Machine protection control
Program restart

Swing over bed: 27.5"
Turning diameter: 26.4"
Turning length: 60.2"
Bar capacity: 3.1"

Spindle 1 speed: 4000 rpm
Spindle 1 power: 25 hp
Spindle 1 bore: 3.58"
Spindle 1 nose: A2-8

Spindle 2 speed: 3000 rpm
Spindle 2 power: 25 hp
Spindle 2 nose: A2-8

Milling spindle speed: 12000 rpm
Milling spindle power: 30 hp
Milling spindle taper: Capto C6

Automatic tool changer: 76
Maximum tool diameter: 2.7"
Maximum tool diameter (with adjacent empty): 5.1"
Maximum tool length: 15.7"
Maximum tool weight: 17.6 lb

Turret: 10 stations

Chuck size: 12" (spindle 1)
Chuck size: 12" (spindle 2)

Machine weight: 19800 lb
