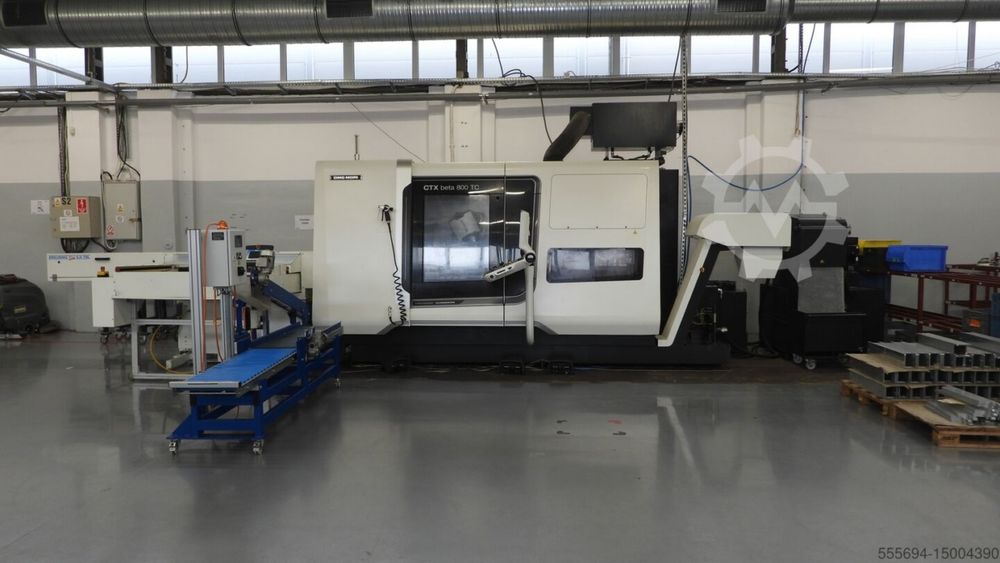

DMG CELOS with Siemens 840D sl 5000 rpm MORI CTX beta 800 TC 3 Axis

X-axis travel: Y-axis ±100 mm
B-axis ±110°
C-axis
Control: CELOS with Siemens 840D sl
Turning diameter: 450 mm
Turning length: 800 mm
Main spindle drive power: 25/32 kW
Main spindle speed: up to 5,000 rpm
Draw tube inner diameter: 67 mm
Counter spindle drive power: 12.5/14.5 kW
Counter spindle speed: up to 6,000 rpm
Draw tube diameter: 52 mm
Top cross slide with turning/milling spindle
Milling spindle power: 19/22.5 kW
Milling spindle speed: up to 12,000 rpm
Tool holder: HSK-A 63 DIN 69893
24-station tool disc magazine
Hydraulic partial hollow clamping device
Reamstock function for the counter spindle
Absolute direct position measuring systems
Hinged belt chip conveyor
Fine chip package
Coolant system 8/20 bar
Chuck flushing system
Coolant supply through the counter spindle
Coolant spray gun
Mechanical oil mist separator
TC60 workpiece measuring probe BLUM
MPC 1.0 Machine Protection Control
Automatic work area door
Standard Profibus electrical interface for Robo2Go
Energy meter
Complete machining of shaft parts without process interruption
DMG MORI NETSERVICE
DMG MORI Io Tconnector
DMG MORI Service Agent
DMG MORI Messenger V2
SK 2017-5465 connection to automatic loader
SPANNTOP collet chuck GR-80
Automatic workpiece loader ILS-TBL-8012
Total power requirement: 74 kVA
Weight: 10 t
