DMG CNC CONTROL 4,000 RPM Mori NLX2500SY/700 5 Axis

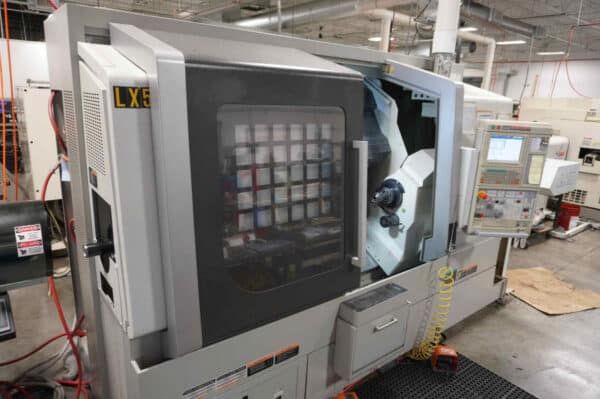

DMG Mori NLX2500SY/700
Year: 2011

Axis: 5
Max Swing: 23.2″
Max Turning Diameter: 18.1″
Max Turning Length: 27.7″
Machining Length: 27.7″
Chuck Size: 10″
Bar Capacity: 3.1″
Main Spindle Speed: 4,000 RPM
Main Spindle Motor: 25 HP
Main Spindle Nose: A2-8
Main Spindle Bore: 3.5″
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Travels (X/Y/Z): 10.2″ / ±2.0″ / 31.3″
Sub-Spindle Travel (B Axis): 28.9″
C Axis Travel: 0.001°
Rapid Traverse (X/Z): 1,181 IPM
Turret Type: Block Style
Turret Positions: 12
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 RPM
Rotary Tool Motor: 7.5 HP
Control: CNC (M730BM MAPPS)

Dimensions & Weight
Footprint: 156″ × 82.9″ × 86.6″
Weight: 14,000 lbs

Equipped With
Chip Conveyor
Tool Presetter
Live Tooling
Sub Spindle
5 Live Tools
Y Axis
5-Axis Capability
