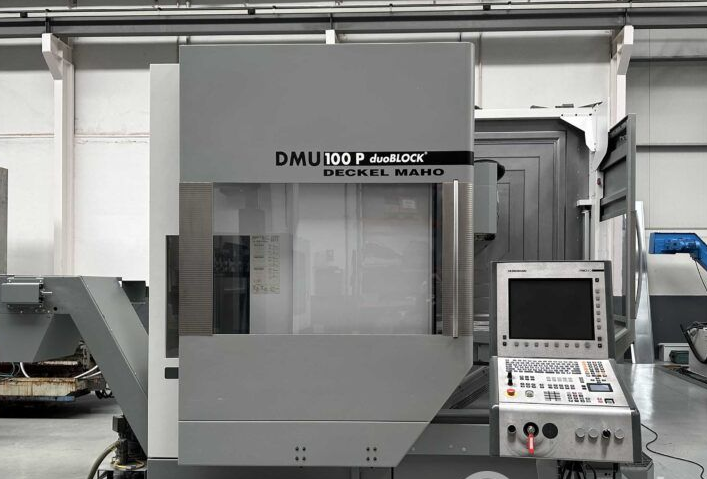

DMG DMU 100 P DUOBLOCK® 5 Axis

Longitudinal Travel (X Axis): 1,000 mm
Cross Travel (Y Axis): 1,000 mm
Vertical Travel (Z Axis): 1,000 mm
Table Surface: 1,100 × 900 mm
Max. Carrying Load Table: 2,000 kg
Table Rotation (C Axis): 0.001° Continuous
Horizontal / Vertical Auto Indexing Head (B Axis): 0.001° Continuous
Rapid / Work Speed: 60,000 mm/min
Control: HEIDENHAIN iTNC-530 3D
Spindle Taper: SK-40 DIN 69871
Spindle Speed: 20–18,000 RPM
Spindle Power: 28 / 19 kW (40% / 100% ED)
Spindle Torque: 121 / 82 Nm (40% / 100% ED)
Automatic Tool Changer Positions: 60
Automatic Tool Changer Type: Horizontal Chain
Internal Coolant: Included
Coolant Deposit Capacity: 980 L with 2 High Pressure Pumps
Internal Coolant Pump Activation with M-Function: Included
Chip Conveyor: Included
Portable Handwheel: HEIDENHAIN HR-410
Tool Touch Probe: BLUM LASER NT-Hybrid
Total Power: 69 kVA
Net Weight: 16,800 kg
