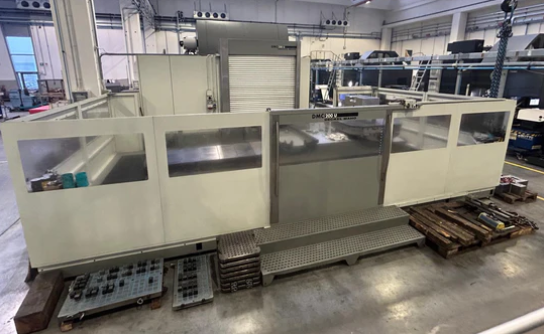

DMG DMC 200 U 4 Axis

Axes Travel X: 1800 mm
Axes Travel Y: 2000 mm
Axes Travel Z: 1100 mm
Rotary Table Speed: 10 t/min
Control: HEIDENHAIN iTNC 530
Table Length: 1600 mm
Table Width: 1400 mm
Max Table Load: 3500 kg
Spindle Nose: HSK-A100
Spindle Speeds: Stepless 0–12,000 t/min
Spindle Power: 44 kW
Max Torque: 288 Nm
Rapid Traverse X: 60 m/min
Rapid Traverse Y: 40 m/min
Rapid Traverse Z: 40 m/min
Voltage: 3x 400 V 50 Hz
Tool Magazine: 120 positions
Coolant Through Spindle: 80 bar
Air Blast Through Milling Spindle
Paper Filtration System
Tracer/Feeler
Laser Tool Measurement
