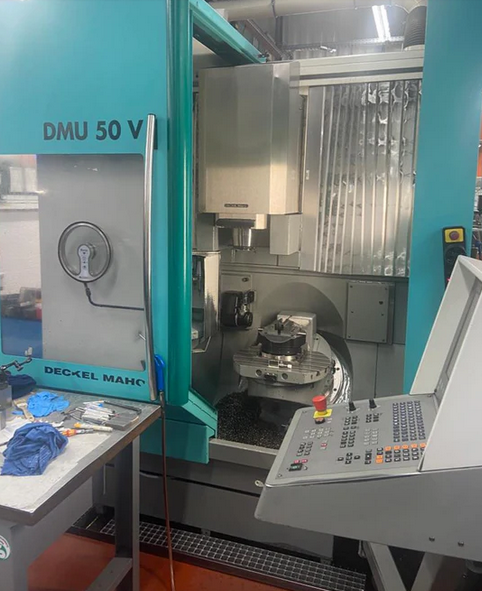

DMG DMU 50 V 5 Axis

X-axis travel: 500 mm
Y-axis travel: 380 mm
Z-axis travel: 380 mm
Feed range: 10000 mm/min
Rapid traverse: 30 m/min
A-axis swivel angle: 180°
Control: HEIDENHAIN TNC 426
HEIDENHAIN touch probe
Electronic handwheel
Lamp
Rotating viewing window
RS232 interface
Switch cabinet air conditioner
Table size: 500 x 380 mm
Table load capacity: 200 kg
5 T-slots
T-slot pitch: 63 mm
T-slot width: 14H7 mm
Centering bore diameter: 30H7 mm
Spindle nose: SK40 DIN 69871 A
Spindle speed range: 20 - 8000 rpm
Vertical spindle speed range: 20 - 8000 rpm
Spindle motor: 15 / 10 kW
Maximum torque: 130 / 87 Nm
Vertical quill travel: 90 mm
24-position tool changer
Tool diameter: 80 mm
Maximum tool diameter with adjacent pocket free: 130 mm
Maximum tool length: 280 mm
Maximum tool weight: 6 kg
Table speed up to: 18 rpm
Air connection: 6 bar
Voltage: 3 x 400V / 50Hz
Total power required: 26 kVA
Machine weight: 3500 kg
Machine dimensions: 2450 x 1800 x 2380 mm
Time under power: 82274 h
Operating time: 81288 h
