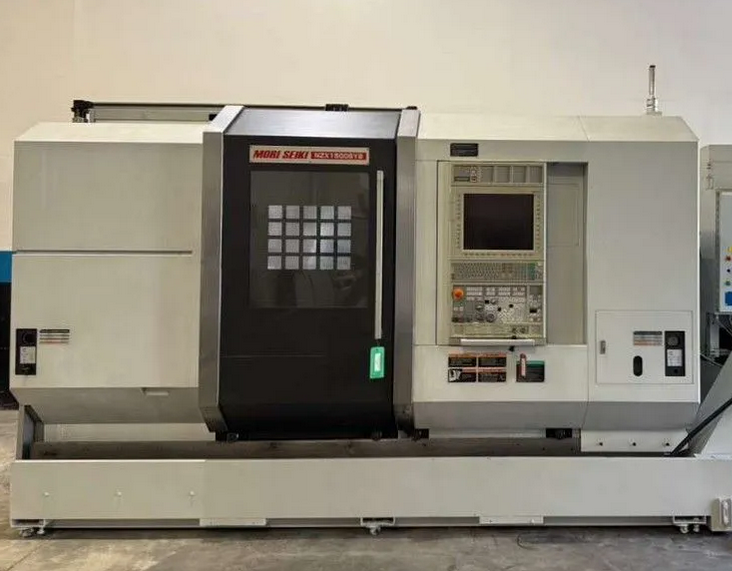

DMG Fanuc 31i-A Series CNC 6000 rpm MORI SEIKI NZX 1500/1800SY2 5 Axis

X-Axis: 8.3"
Y-Axis: +2.6" / -1.8"
Z-Axis: 31.9"
B-Axis: 35.4"
C-Axis: 360°
Rapid Traverse X-Axis: 1181 ipm
Rapid Traverse Y-Axis: 787 ipm
Rapid Traverse Z-Axis: 1968 ipm
Control: Fanuc 31i-A Series CNC
Twin spindle
Twin turret
Y-Axis on both turrets
Servo controlled C-Axis on both spindles
Coolant system
Chip Blaster
Mist Blaster
Spindle chiller unit
High pressure coolant system
Bar capacity: 2"
Swing: 31.5"
Max. turning length: 31.5"
Max. turning diameter: 11.8"
Spindle bore: 2.4"
Spindle nose: A2-5
Spindle power: 30 hp
Max spindle speed: 6000 rpm
Sub spindle power: 30 hp
Sub spindle max speed: 6000 rpm
Sub spindle bore: 2.4"
Sub spindle nose: A2-5
16 station live tool upper turret
16 station live tool lower turret
Collet chuck on main spindle
Collet chuck on sub spindle
PCMCIA card slot
USB port
Dimensions: 173" x 111" x 91" high
Weight: 18,300 lbs
Chip conveyor
Foot switches
