DMG Fanuc 31iA 3,000 rpm Mori NT4300DCG/1500 SZ 9 Axis

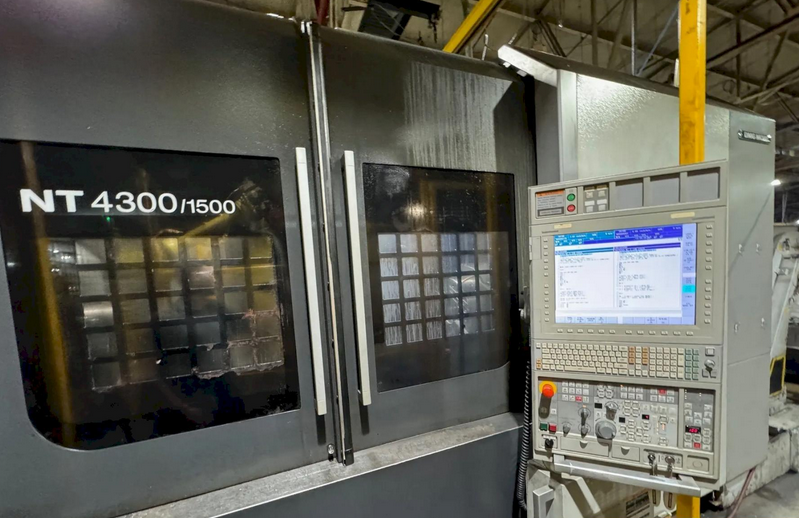

DMG Mori NT4300DCG/1500 SZ
Year: 2015

Highlights:
Full B Axis Milling Head
100 ATC
Probing

CNC Controlyes
Control Type Fanuc 31iA
# Axis9
Swing28.7"
Turning Diameter25.9"
Max Machining Length59"
Chuck Size15"
Bar Capacity3.15"
X Axis Travel29.53"
Y Axis Travel8.27"
Z Axis Travel61.02"
X2 Axis Travel7.7"
Z2 Axis Travel60"
B Axis Rotation Range+/- 120° Degrees
B Axis Indexing0.0001° Degrees
Spindle Speed 3,000 rpm
Main Motor 30 hp
Tailstock no
Y Axis yes
Sub Spindle yes
Sub Spindle Chuck 15"
Sub Spindle Speed 3,000 rpm
Milling Spindle Taper Capto 6
Milling Spindle Speed 12,000 rpm
ATC Capacity 100 Stations
Turret Capacity 12
Machine Weight 59,000 pounds

Equipped With:
- Fanuc 31iA CNC Control
- Full B Axis Milling Head
- Probing
- Scale Feedback on X
- Chip Blaster High Pressure Coolant Unit
- Chip Conveyor
- Tool Presetter
- 100 Tool ATC
- Assorted Capto Tools
- Hobbing Software
- Chiller
