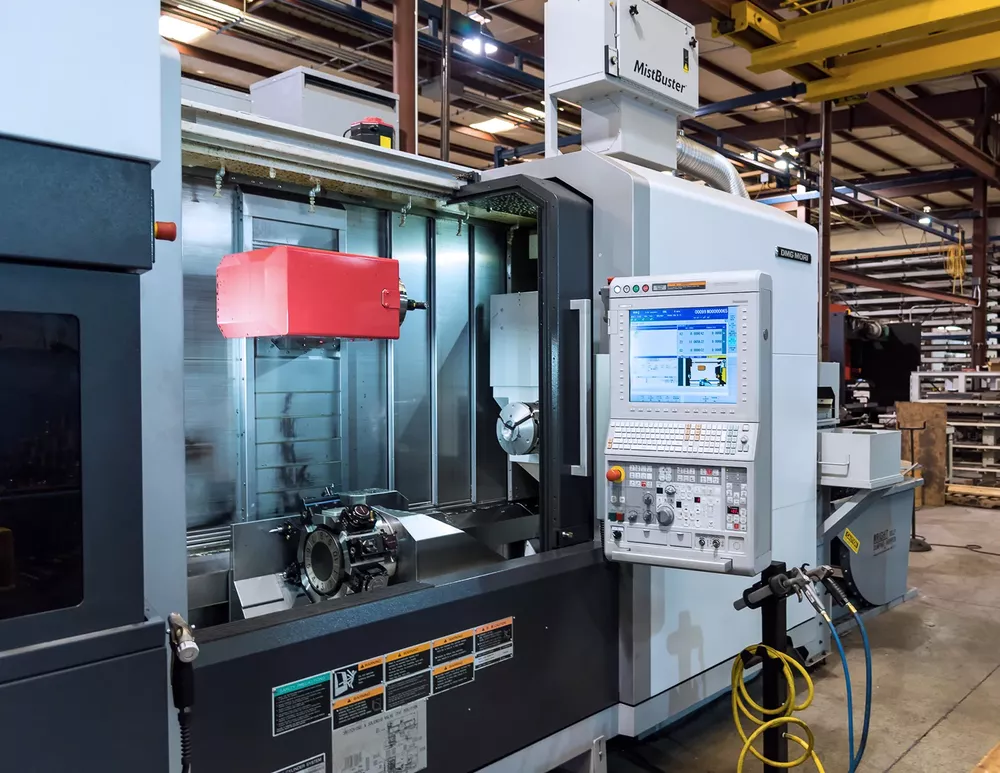

DMG Fanuc 31iB5 5000 RPM MORI NTX 2000/1500SZM 8 Axis

DMG MORI NTX 2000/1500SZM
2015

Chuck size 8 in
Bar capacity 2.5 in
Maximum swing 5.9 in
Maximum turning diameter 24 in
Maximum turning length 60.5 in
X1 axis travel 26.5 in
Y1 axis travel 11.8 in
Z1 axis travel 61.4 in
X2 axis travel 8.8 in
Z2 axis travel 60.7 in
Main spindle speed 5000 RPM
Sub-spindle speed 5000 RPM
B-axis milling head speed 12000 RPM
B-axis spindle taper Capto C6
B-axis travel 240°
C1 axis travel 0.001°
C2 axis travel 0.001°
Tool changer capacity 76 tools
Lower turret 10 station
Lower turret taper Capto C4
Machine dimensions 230 in x 112 in x 109 in
Control Fanuc 31iB5
B-axis milling head 12000 RPM
76 station tool magazine
Full C-axis on main spindle
Full C-axis on sub-spindle
Y axis capability
Main chuck 8 in
Sub-spindle chuck 8 in
Live tool lower turret 10 station
Bar feeder interface
Renishaw probe
Mist collector
Rigid tapping
High pressure coolant system 1000 PSI
Chip conveyor
Automatic parts unloader on sub-spindle
