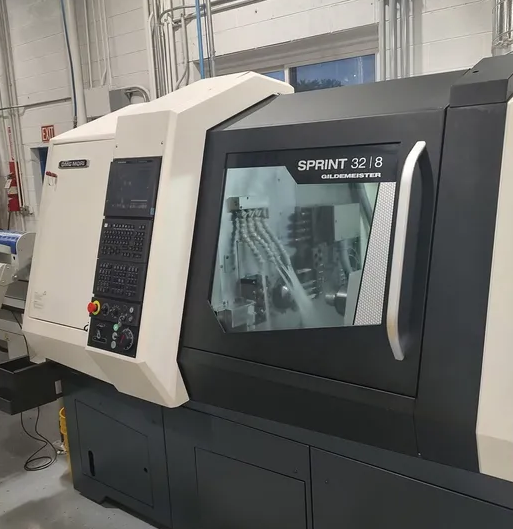

DMG Fanuc 32i-B 8,500 MORI SPRINT 32/8 8 Axis

Swiss Type CNC AUTO SCREW MACHINE
Control: Fanuc 32i-B
Main Spindle Max Bar Passage: Ø32 mm
Main Spindle Stroke Z1: 100 mm
Main Spindle Stroke Z1 with SWISSTYPEkit: 240 mm
Main Spindle Stroke Z1 with SWISSTYPEkit and B-axis: 221.5 mm
Main Spindle Max RPM: 8,500
Main Spindle Motor Power: 5.5 kW (S1)
Driven Unit Slide 1 Radial Rotating Toolholders: 4 × Ø31.5 mm, 2 ratio 1:1 max 6,000 rpm, 2 ratio 1:0.7 max 4,200 rpm
Block Slide 1 Fixed Tool Holders Axial Machining: 4 × Ø25 mm
Block Slide 1 Tool Holders Radial Machining: 6 × 16x16 mm shank
Driven Unit Slide Y2 Axial Rotating Toolholders: 4 × ESX20 collet, ratio 1:1 max 6,000 rpm
Driven Unit Slide Y2 Fixed Toolholders Axial Machining: 4 × Ø25 mm with internal cooling
Collet Main Spindle Compression Type: Size 32, max diameter 32 mm, hex max 27 mm, square max 22 mm
Collet Counterspindle Compression Type: Size 32, max diameter 32 mm, hex max 27 mm, square max 22 mm
Block Fixed Tool Holders Beside Counterspindle: 2 × Ø25 mm
Spindle Hole Diameter: 1.25"
Spindle Power: 7.5 hp
Counterspindle Pneumatic Cleaning System
Pneumatic Ejector with Workpiece Unloading Check Device
Tape Unloading Workpiece
Coolant System
Electrical and Software Interface for Bar Loader
Electrical and Software Interface for Fire Extinguisher System
Hour Counter
Electrical Cabinet for 8 Axes
SWISSTYPEkit Up to Ø32 mm
Changing Kit from Steady to Sliding Headstock
Application Bush Type Dunner J9
Bush-Spindle Synchronism
Counter Spindle Collet Cleaning with Coolant
2 Additional M Functions Free for Customer Use (Total 4 M-Functions)
Electrical and Software Preparation for Cooling System USA Version
Kit for Machining with Soluble Water Coolant
Electrical and Software Interface for Oil Mist Collector
Belt Type Chip Conveyor, Swarf Falling Height 600 mm
Signal Lamp with 4 Colors (Red, Yellow, Green, Blue)
DMQP: ATS-P# U70-36V - 9gpm/36lpm Variable Flow - 1,000 psi/70 bar Pressure, Dual Outlet, HMI Display
DMQP: Unit Integrated Oil Skimmer, Optional Oil Transfer Pump Upgrade
DMQP: Additional Unit High Pressure Outlets, Up to 6
DMQP: Outlet Flow Sensor, One Per Outlet
DMQP: Integrated Magnetic Separator Pre-Filter
DMQP: Supplemental Coolant Tank 100gal/380L, 240gal/900L, 480gal/1800L
DMQP: Shipping and Handling by Supplier
Iemca BOSS 388, 6 ft with 38 mm Guide Channel
Iemca Anti Vibration Device
Iemca Category III Interface (Dual Channel Safety Circuit Protection)
Iemca Additional Guide Channel Set 17 mm
Iemca Spindle Liner 17 mm
Iemca Installation by Supplier
Frequency: 60 Hz
