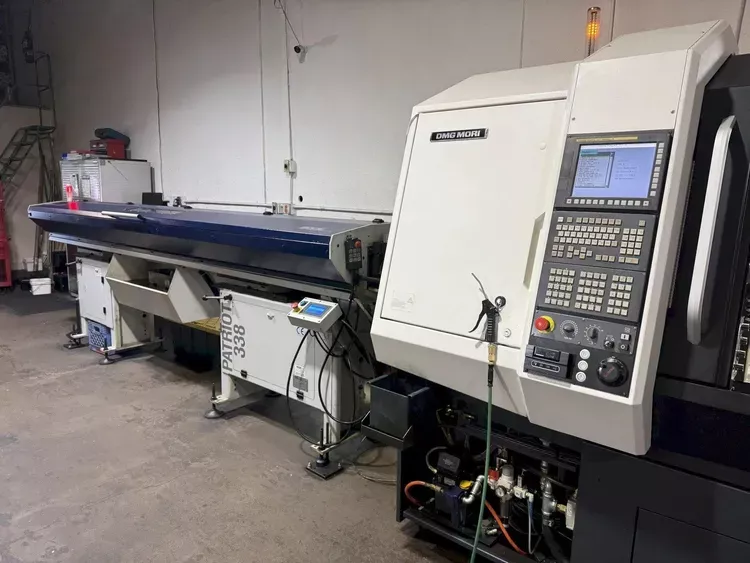

DMG FANUC 32i-B Plus 8,500 rpm DMG MORI SPRINT 32/8 6 Axis

Axes: 6 linear + 2 C-axis
Number of spindles: 2
Number of channels: 2
Control: FANUC 32i-B Plus
Main Spindle Maximum Bar Capacity: 32 mm | 1.26 in
Main Spindle Speed: 8,500 rpm
Main Spindle Power: 7.4 hp
Main Spindle Torque: 29.8 ft-lbs
Counter Spindle Maximum Bar Capacity: 32 mm | 1.26 in
Counter Spindle Speed: 8,500 rpm
Counter Spindle Power: 3 hp
Counter Spindle Torque: 10.3 ft-lbs
Z1 Travel: 100 mm | 3.94 in
Rapid Traverse X1, Z1, X2, Z2/Y1, Y2: 40/30 m/min | 131/98 in/min
Acceleration Linear Axes: 5 m/s² | 0.02 ft/s²
Tool Holder on Slide 1: 6 Fixed Turning Tools
Tools for Front Machining: 4
Tools for Back Working: 4
Driven Tools: 2 + 2
Maximum Tool Speed: 6,000 rpm
Maximum Tool Torque: 2.2 ft-lbs
Bar Feed: 12-ft Patriot 338
High-Pressure Coolant
Integrated Air Handler
