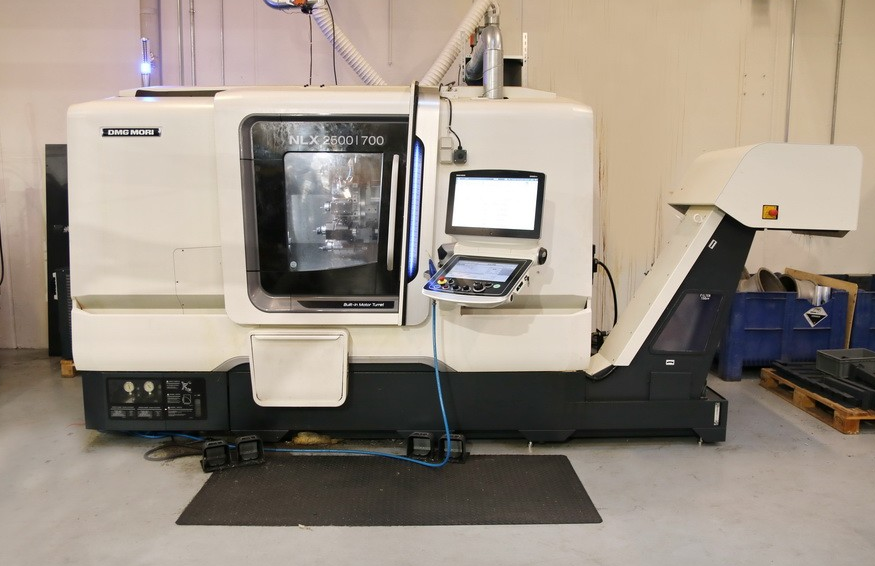

DMG M730 UM Mapps CELOS 4,000 min⁻¹ MORI NLX 2500 SY / 700 5 Axis

X-Axis Travel: 260 mm
Z-Axis Travel: 795 mm
Y-Axis Travel: +/-50 mm
B-Axis Travel: 734 mm
C-Axis Resolution: 0,001°

Control: M730 UM Mapps CELOS
Turning Diameter: 356 mm
Turning Length: 705 mm
Greatest Pass Over Bed: 920 mm
Swing Diameter Over Traverse Guideway: 742 mm
Main Spindle Speed Range: 4,000 min⁻¹
Main Spindle Power: 18,5 / 15 kW
Main Spindle Nose: JIS A2-5
Main Spindle Bore: 43 mm
Subspindle Speed Range: 6,000 min⁻¹
Subspindle Power: 11 / 7,5 kW
Rapid Traverse X/Y/Z: 30 / 10 / 30 m/min
Turret Tool Positions: 12 pos.
Square Tool Shank Height: 25 mm
Drill Shank Diameter: 50 mm
Turret Change Time: 0,27 sec.
Driven Tool Spindle Speed Max.: 10,000 min⁻¹
Driven Tool Power: 5,5 / 4,2 kW
Driven Tool Max Torque: 40,5 / 16 Nm
Total Power Requirement: 42 kVA
Machine Weight: 6,4 t
Machine Dimensions: 5,0 x 3,0 x 2,3 m

Features / Equipment
Subspindle
Tool Drive Mechanism
C, Y-Axis
Bar Feeder Interface (LNS)
Robot Interface
Safety Fence Interface
Alternating Speed
Automatic Front Door
Chip Conveyor
Coolant System
High Pressure Coolant
Hydraulic System
Live Tool Holders
Parts Catcher
Signal Light
Tool Setter
Work Light
Processing Time: 1,604.4 h
Extensive Accessory Package
