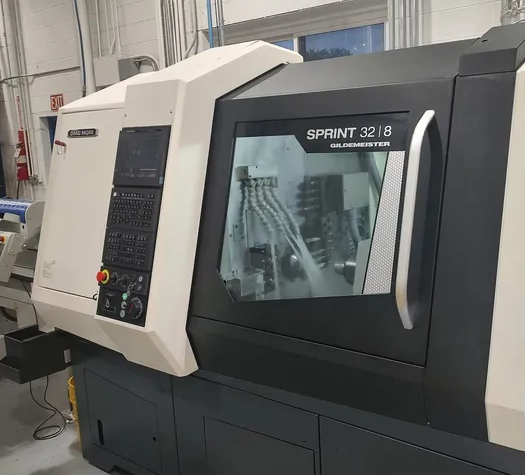

DMG, Mori 8 Axis CNC Control Fanuc 32i-B 8,500 SPRINT 32/8 8 Axis

X1 Axis Travel
Y1 Axis Travel
Z1 Axis Travel 100 mm (with SWISSTYPEkit Z1=240 mm; with SWISSTYPEkit & B-axis Z1=221.5 mm)
X2 Axis Travel
Z2 Axis Travel
Y2 Axis Travel
C Axis

8 Axis CNC Control Fanuc 32i-B
Main Spindle Hole Diameter 1.25"
Main Spindle Max RPM 8,500
Main Spindle Nominal Motor Power 5.5 kW (S1)
Counterspindle
Electric Spindle with C-axis
Iemca BOSS 388 Bar Loader
DMQP ATS-P# U70-36V Coolant System
Chip Conveyor
Pneumatic cleaning system for counter spindle collet
Pneumatic ejector with workpiece unloading check device
Tape unloading workpiece
Slide 1 Driven Unit: 4 radial rotating toolholders Ø31.5 mm for ESX20 collet (2 ratio 1:1 max 6,000 rpm, 2 ratio 1:0.7 max 4,200 rpm)
Slide 1 Block: 4 fixed toolholders Ø25 for axial machining with internal cooling
Slide 1 Block: 6 toolholders with 16x16 shank for radial machining
Slide Y2 Driven Unit: 4 axial rotating toolholders for ESX20 collet ratio 1:1 max 6,000 rpm
Slide Y2 Driven Unit: 4 fixed toolholders for axial machining Ø25 with internal refrigeration
Collet Application Compression Type Size 32 for Main Spindle (max diameter 32 mm, hexagon 27 mm, square 22 mm)
Collet Application Compression Type Size 32 for Counterspindle (max diameter 32 mm, hexagon 27 mm, square 22 mm)
Block 2 Fixed Toolholders Ø25 beside Counterspindle for main spindle operations
SWISSTYPEkit up to Ø32 mm
Changing kit from steady to sliding headstock with bush-spindle synchronism
Counter Spindle Collet Cleaning with Coolant
2 Additional M Functions
Electrical/Software Preparation for Cooling System USA Version
Kit for Machining with Soluble Water Coolant
Electrical/Software Interface for Oil Mist Collector
Belt Type Chip Conveyor (not suitable for short chip material, swarf falling height 600 mm)
Signal Lamp with 4 Colors (Red, Yellow, Green, Blue)
DMQP: ATS-P# U70-36V - 9gpm/36lpm Variable Flow, 1,000 psi/70 bar Pressure, Dual Outlet, HMI Display
DMQP: 2+2 Manual Crossover 10 μm Bag Filtration, 4 Preset Pressures, Pre-wire Kit for Mounted Chiller & Mist Collector
DMQP: Integrated Oil Skimmer, Supplemental Coolant Tank Options (100 gal / 240 gal / 480 gal)
DMQP: External Manifold Outlets Kit (2, 4, 8 Ports)
DMQP: Swiss Machine Internal Tooling Coolant Delivery Manifold
DMQP: Iemca Boss 338 Superfast 6 ft with 38 mm Guide Channel
DMQP: Iemca Anti Vibration Device
DMQP: Iemca Category III Interface (Dual Channel Safety Circuit Protection)
DMQP: Iemca Additional Guide Channel Set (17 mm)
DMQP: Iemca Spindle Liner (17 mm)
DMQP: Installation by Supplier
Frequency 60 Hz
