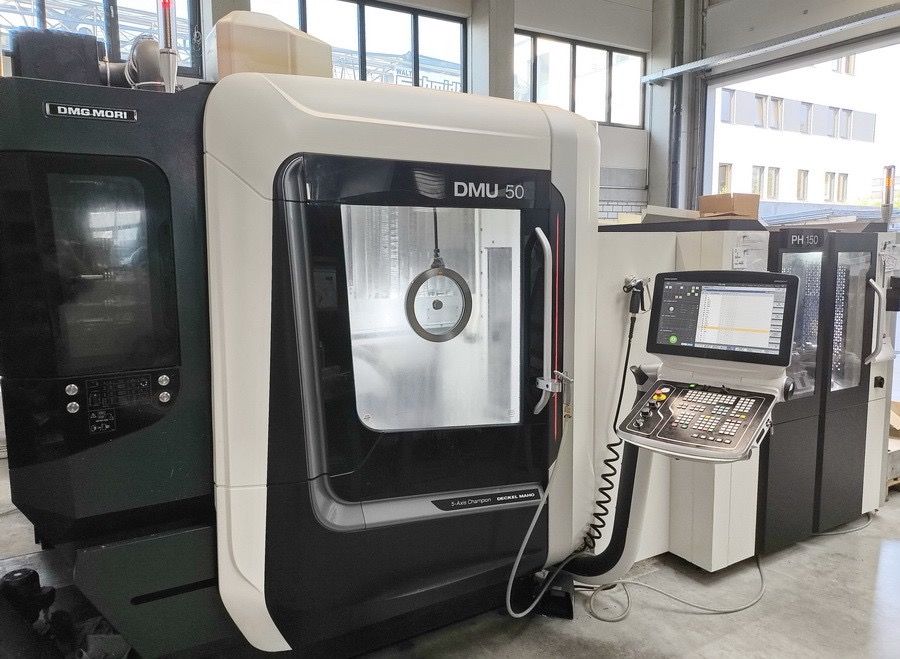

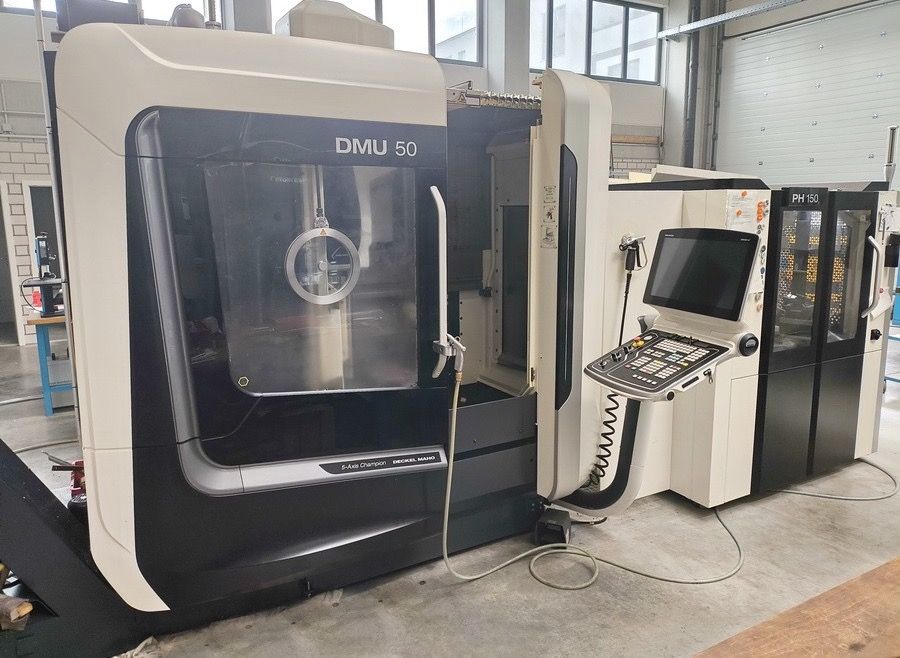

DMG Siemens 840D sl Operate CELOS 20,000 rpm DMU 50 3rd with PH 150 5 Axis

Travel X-axis: 650 mm
Travel Y-axis: 520 mm
Travel Z-axis: 475 mm
C-Axis: 360°
B-Axis: -35° / +110°

Control: Siemens 840D sl Operate CELOS

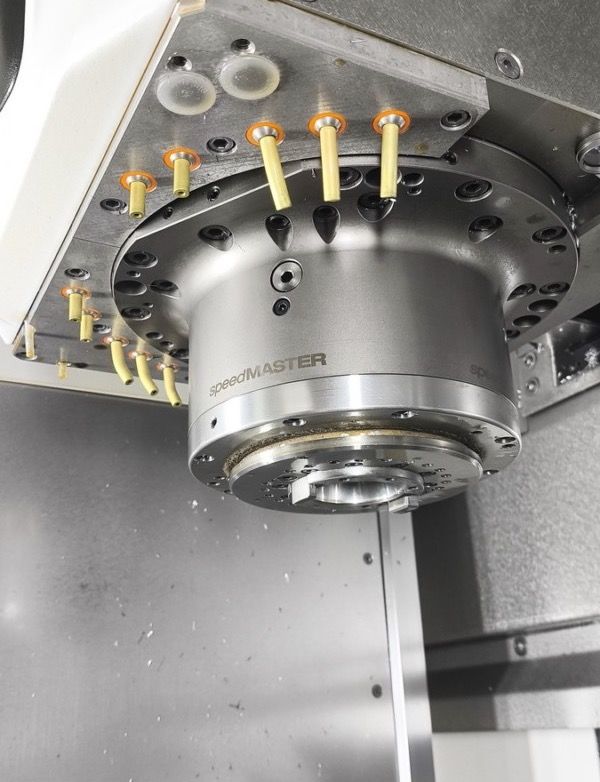

Main spindle speed range: 20 - 20,000 rpm
Main spindle power 100% ED: 35 / 25 kW
Main spindle max torque: 130 / 86 Nm
Tool taper: SK 40

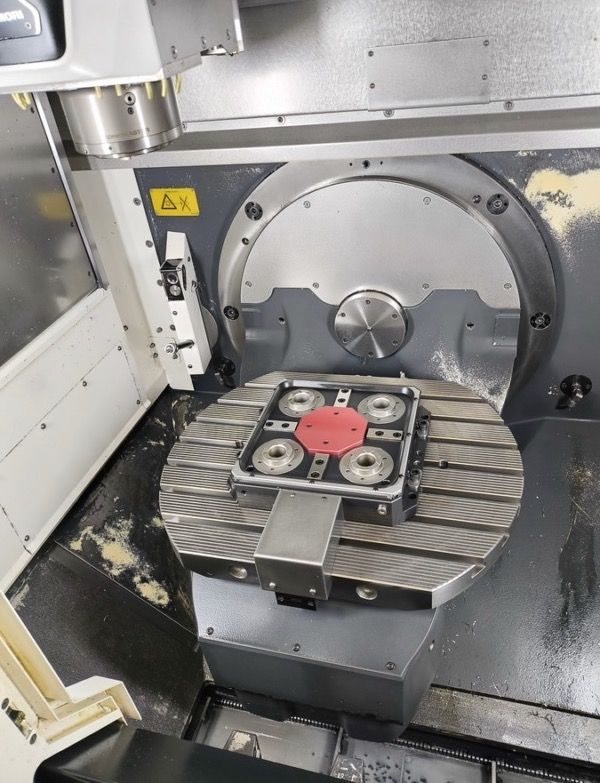

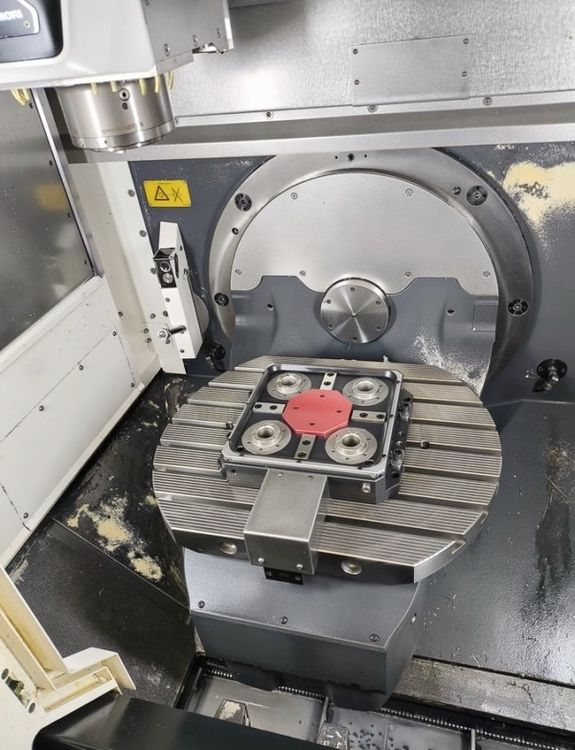

NC-Tilting rotary table surface: Ø 630 x 500 mm
NC-Tilting rotary table max load: 300 kg
Number of T-slots: 7 x 14H7 x 63

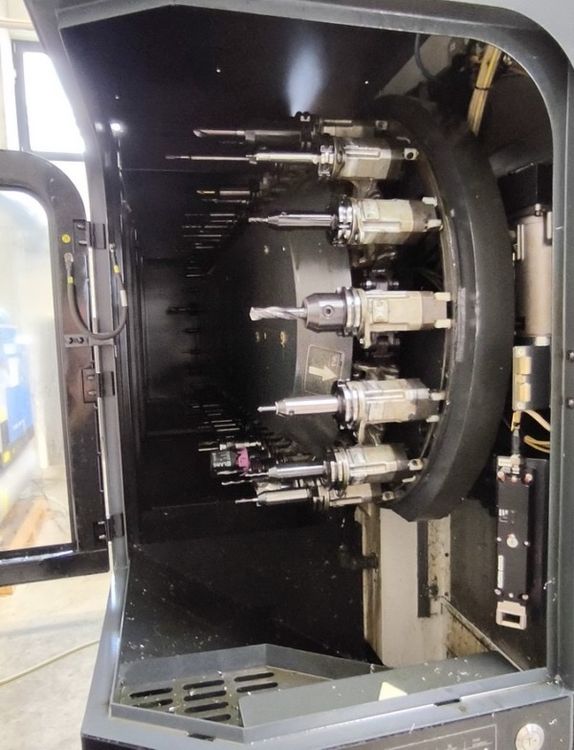

Tool magazine positions: 60
Max tool diameter: 80 / 130 mm
Max tool length: 300 mm
Max tool weight: 6.0 kg
Rapid traverse X/Y/Z: 42 m/min
Total power requirement: 39 kVA
Machine weight: 7.8 t
Machine dimensions: 5.0 x 4.0 x 2.8 m
3D quickSET software option
Airblow through spindle center
Chip conveyor
Coolant-air-blast change-over
Coolant system

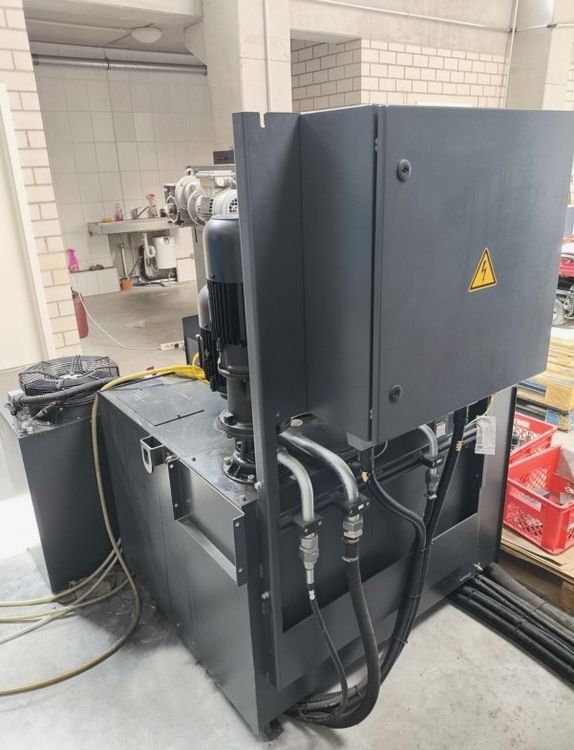

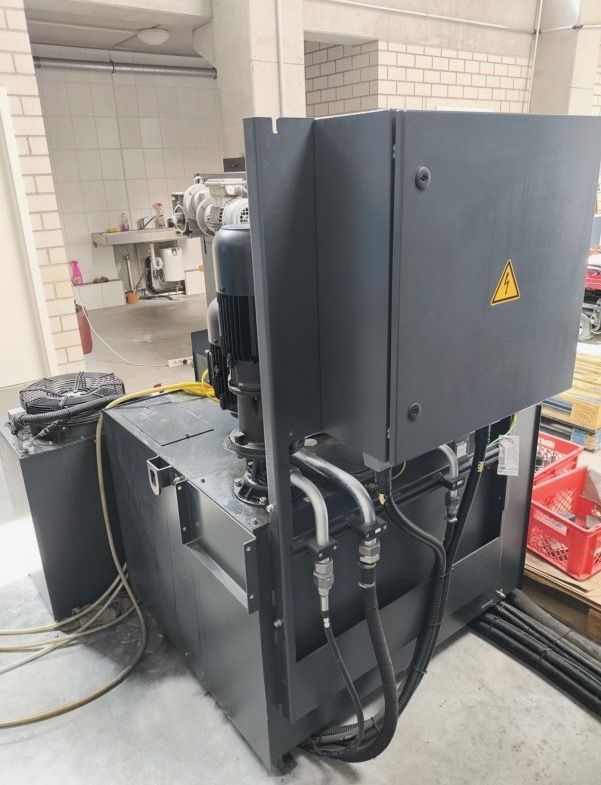

High pressure coolant 40 bar / 600 l
NC-Rotary swiveling table
Oil mist extraction
Operation mode 4

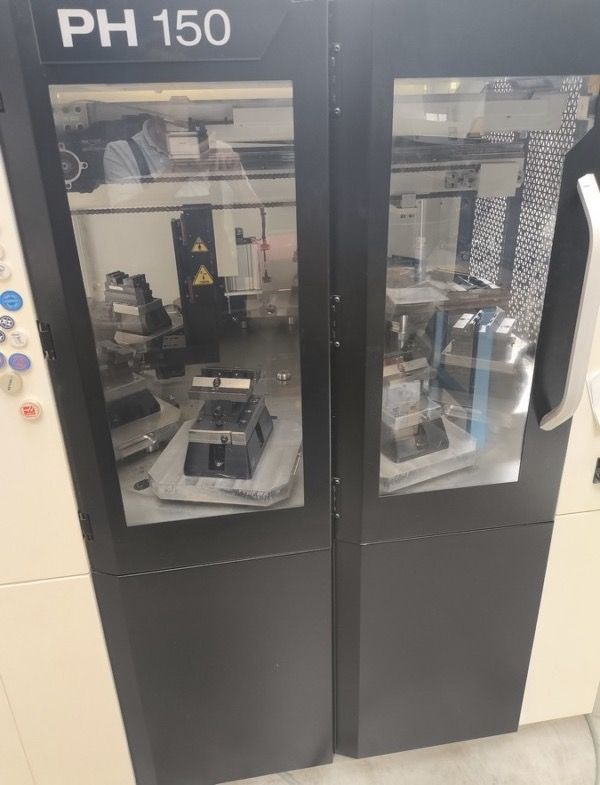

Pallet loading station PH 150

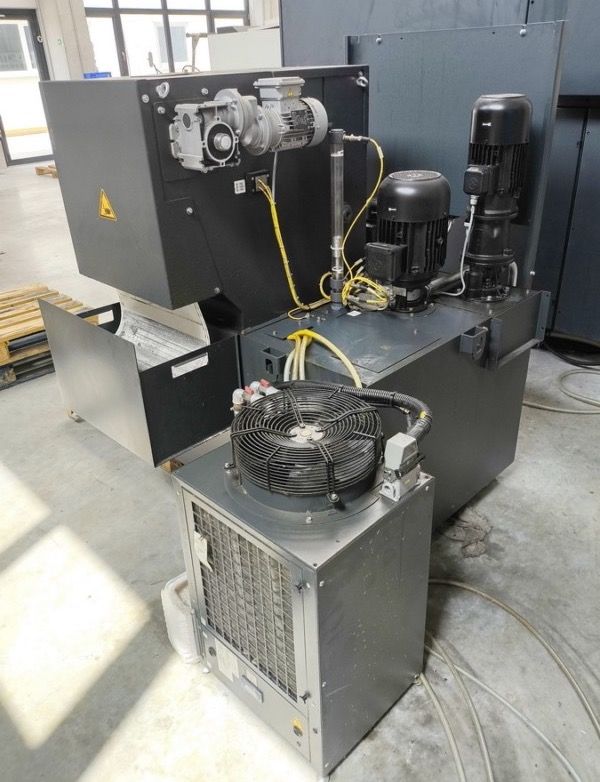

Paper band filter
Rotary screen
Rotary union
Signal light
Spray gun
Test probe Renishaw PP60
Through spindle coolant
Tool magazine
MPC Machine Protection Control
DMG MORI PROFIBUS automation interface
ATC (Application Tuning Cycle)
Handling system with pallet magazine
Rotary storage with 10 pallet holders
Handling capacity 150 kg
Job Manager
Comfort Plus control
Pallets and clamping devices included
