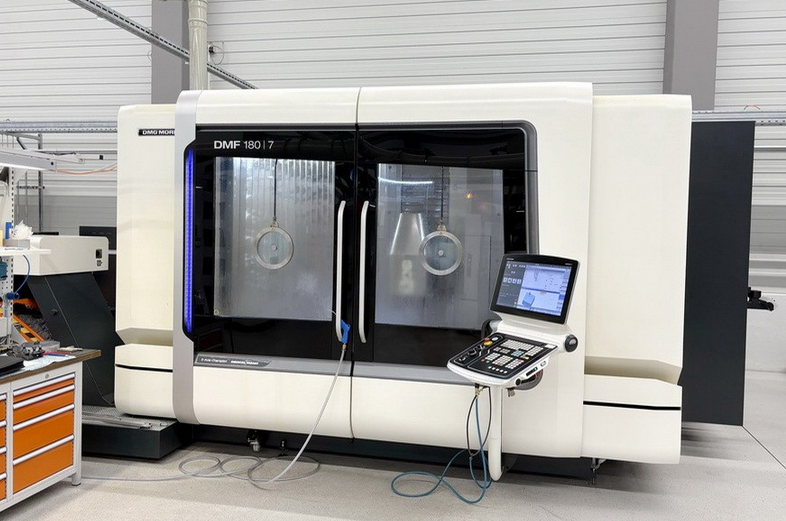

DMG MORI DMF 180-7 5 Axis

X-axis travel 1,800 mm
Y-axis travel 700 mm
Z-axis travel 700 mm
B-axis swivel +/- 100°
C-axis rotary 360°

Control Siemens 840 D sl op. (CELOS)
Main spindle speed 20 – 20,000 min⁻¹
Main spindle power 35 / 25 kW
Main spindle max. torque 130 / 86 Nm
Spindle taper HSK-A63
Work table surface 2,100 x 700 mm
Work table max. load 500 kg
Work table T-slots 7

NC rotary table diameter 750 mm
NC rotary table T-slot distance 63 mm
NC rotary table height 255 mm
NC rotary table turning speed 16 1/min
NC rotary table resolution 0.001°
Tool magazine positions 60

Max. tool weight 6 kg
Max. tool diameter 80 mm
Max. tool diameter with free toolbox 130 mm
Max. tool length 300 mm

Chip-to-chip tool change 7.6 sec
Rapid traverse X / Y / Z 40 m/min
Acceleration 4 m/s²
Feed speed max. 40,000 mm/min
Feed force X / Y / Z 8 kN
Total power requirement 73 kVA
Machine weight 13,700 kg
Machine dimensions 7.5 x 6.5 x 3.0 m
3D quickSET
Air blow through spindle center
Chip conveyor
Coolant system
Direct probing
Electronic hand wheel
Full splash guard
High pressure coolant 40 / 80 bar
Oil dust skimmer
Operation mode 4
Paper band filter
Rotary screen 2x
Spray gun
Test probe DMG MORI - PP 60 opt.
Tool setting BLUM Laser
