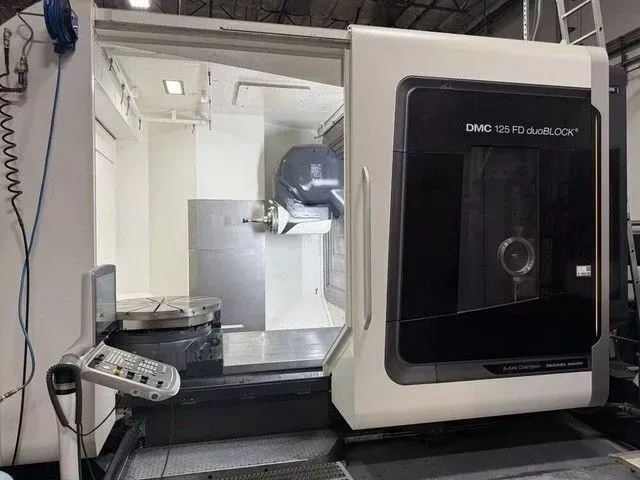

DMG MORI DMU 125 FD DUOBLOCK 6 Axis

X axis travel 49.2 in
Y axis travel 49.2 in
Z axis travel 39.4 in
A axis travel -120° to +10°
B axis travel -30° to +180°
C axis table indexing 0.001°

Rapid traverse X axis 2,362 in/min
Rapid traverse Y axis 2,362 in/min
Rapid traverse Z axis 2,362 in/min
Cutting feed rate 2,362 in/min
Control CELOS with Siemens 840D SI Operate
Through spindle coolant
Renishaw infrared tool measuring probe
Laser tool measurement system
3D Blum laser tool measurement
Mechanical tool breakage monitoring in tool magazine
3D Quickset
Electronic handwheel Siemens 840D
MPC machine protection control
MDynamics package
Sensor package i4.0
Turning cycle application
Operation panel for loading station tool magazine
4 color signal lamp
Production package coolant system 258.9 gal
Paper band filter
Internal coolant supply 980 psi / 1300 psi two pressure stages
ICS 80 bar frequency controlled
Coolant tempering
Spray gun
Air blast cooling unit through spindle center
Number of pallets 2
Table load capacity 5,070 lb
Max workpiece diameter 49.2 in
Max workpiece height 63 in
Main spindle speed 12,000 rpm
Main spindle power 59 hp
Main spindle taper 100
Vertical turning table speed 500 rpm
Vertical turning table power 92.5 hp
Automatic tool changer 123 tools
Max tool diameter 4.3 in
Max tool diameter with adjacent pockets free 7.9 in
Max tool length 25.6 in
Max tool weight 66.1 lb
Chip conveyor
Machine weight 43,651 lb
