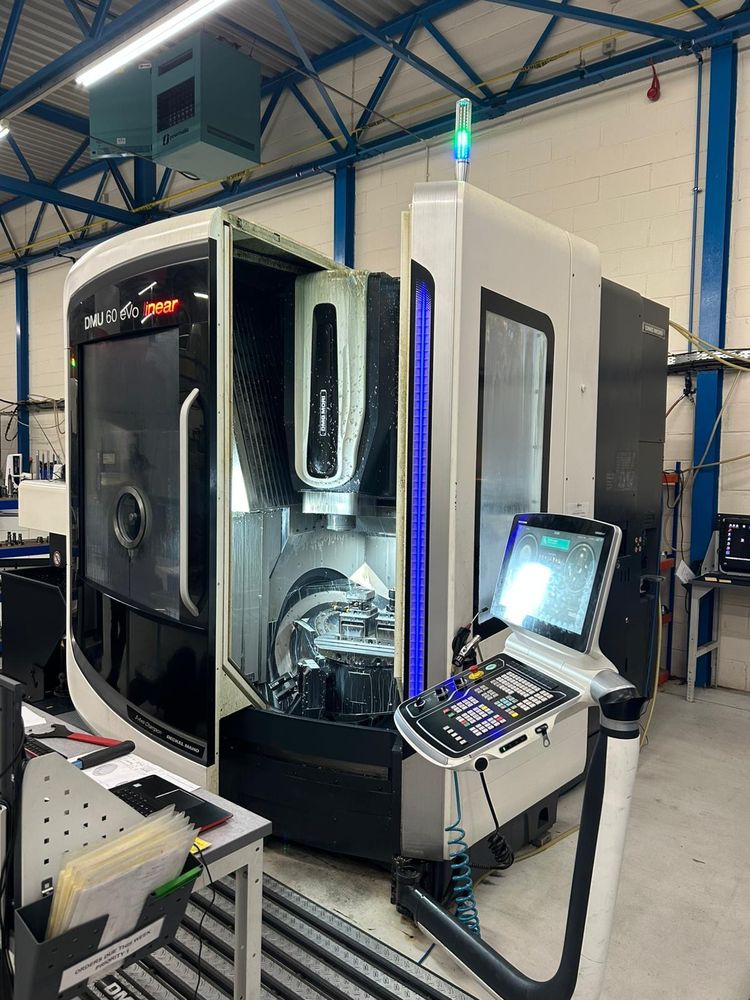

DMG MORI DMU 60 eVo Linear 5 Axis

DMG MORI DMU 60 eVo Linear
2018

X-axis travel: 600 mm
Y-axis travel: 500 mm
Z-axis travel: 500 mm
B-axis range: -5° to +110°
C-axis rotation: 360°
Positioning resolution: 0.001°
Rapid feed rate: 80 m/min
Spindle power: 25/35 kW
Spindle speed: 20000 rpm
Spindle taper: HSK A63
Tool capacity: 120 tools
Table size: 630 mm
Max workpiece weight: 400 kg
Min spindle clearance: 125 mm
Max spindle clearance: 625 mm
Through-spindle coolant: 40 bar
Table rotation speed: 1200 rpm
Control: Siemens 840D Ergoline
Machine length: 3543 mm
Machine width: 2960 mm
Machine height: 2865 mm
Machine weight: 9850 kg

5-axis simultaneous machining
High-speed spindle
Active cooling system
Through-tool coolant
Spindle probe
Tool setter
Chip conveyor
Gear skiving capability
High-speed machining function
Safety interlocks
Low voltage lighting
Automatic tool changer
Precision rotary axes
Linear drive technology
