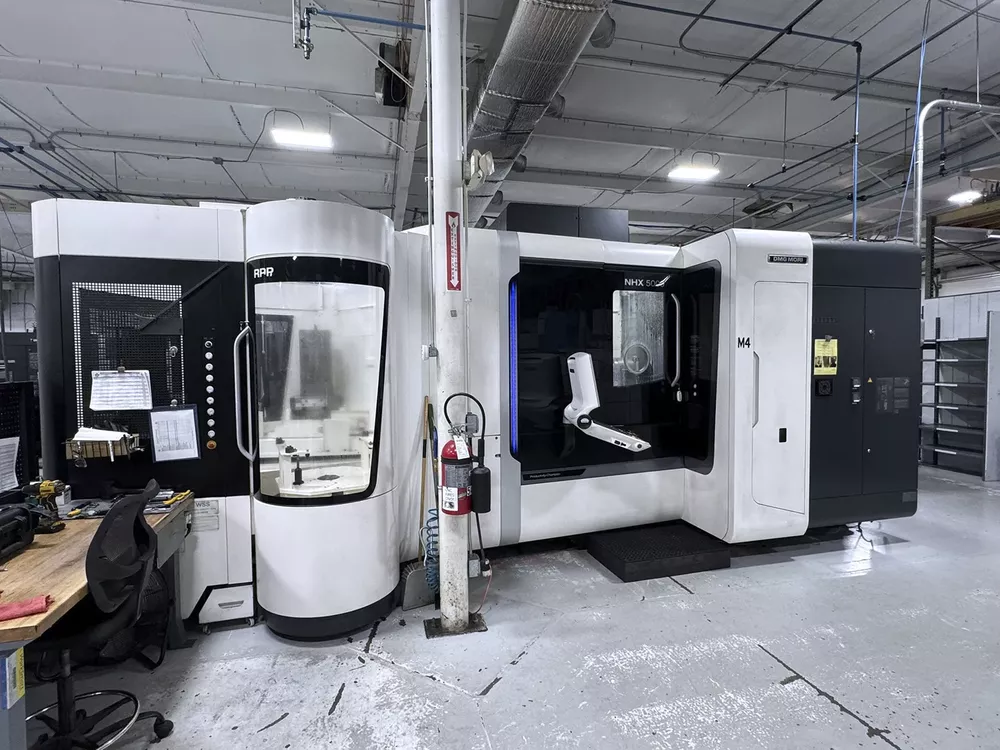

DMG MORI NHX 5000 RPP 4 Axis

X travel 28.7"
Y travel 28.7"
Z travel 34.6"

Rotary / C Axis
B-axis indexing 0.001°
Minimum pallet indexing angle 0.001°

Control and Features
Control Celos ERGOline

Spindle Specs
Max spindle speed 20000 rpm
Taper CAT 40

Machine Size / Weight / Equipment
Distance pallet surface to spindle center 31.9"
Distance pallet center to spindle gage plane 37.4"
Number of pallets 5
Distance floor to pallet surface 47.2"
Pallet size 19.7" × 19.7"
Pallet load capacity 1540 lbs
Maximum workpiece swing diameter 31.4"
Maximum workpiece height 39.4"

NHX5000 5 RPP pallet changer
High-speed 20000 rpm SpeedMASTER spindle
Full 4th axis rotary table
180-tool magazine
Through-spindle coolant system ChipBLASTER 1000 PSI
Rotary window
Renishaw OMP60
Touch sensor Renishaw
Coolant gun at setup station
MistBlaster on high-pressure unit
Hinge-type chip conveyor
