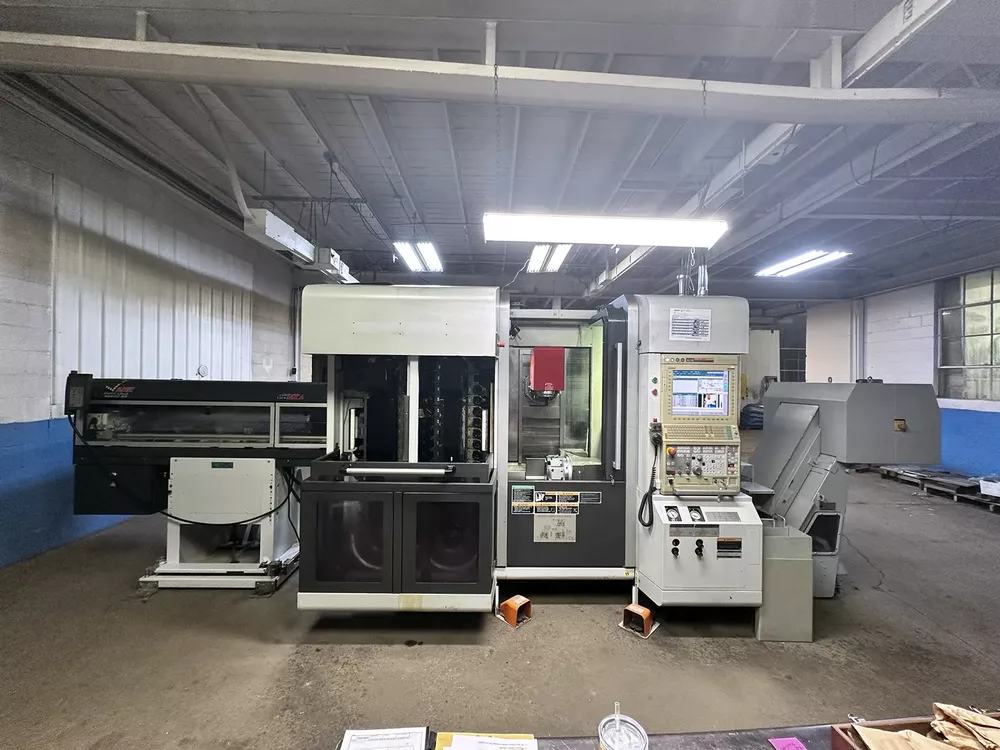

DMG MORI NTX1000/SZM 5 Axis

X-axis travel (X1, X2, X3): 15" / 6.1"
Y-axis travel (Y1, Y2, Y3): 4.1"
Z-axis travel (Z1, Z2, Z3): 18.1" / 24"
B-axis travel: 120°
Control: Fanuc 31i-B5
Maximum swing: 17.7"
Maximum turning diameter: 14.5"
Maximum turning length: 16.6"
Spindle bore: 2.9"
Main spindle speed: 6000 rpm
Sub spindle speed: 6000 rpm
Turret tool positions: 10 positions with milling
Turret rotary tool spindle speed: 12000 rpm
Tooling system: Capto C5
ATC capacity: 76 tools

5-axis simultaneous control
Sub-micron measuring specifications
20 additional external M-codes
Renishaw OMP60 probing system
Renishaw HPRA with RP3 tool pre-setter and case
Coolant tank and chip conveyor
HPS 75 kVA transformer (480V–208Y/120)
LNS Quick Load bar feeder Servo S3
Cool Jet high-pressure coolant system (3515LV2-NT)
Panasonic coolant chiller unit
BK Micro system
New glass scales on X and Z axes
New X and Z ballscrews
