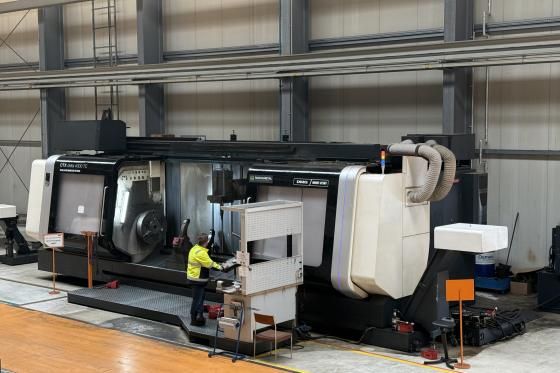

DMG SIEMENS 840D control MORI CTX DELTA 4000 TC

DMG MORI CTX DELTA 4000 TC
2012

SIEMENS 840D control
Combines turning with 5-axis milling
Simultaneous 5-axis machining in one workspace
Mill-turn operation in a single cycle
Application for crankshaft machining
Application for turbine blade machining
Application for aerospace components
Internal boring bar machining for pumps, housings, castings, turbines

Feed rate X axis 40000 mm/min
Feed rate Y axis 30000 mm/min
Feed rate Z axis 32000 mm/min

Workload unsupported 7000 kg
Glass scales in Y and Z axis
Renishaw 3D probe
Steady rest 1 range 125–460 mm
Steady rest 2 range 460–700 mm
Double chuck SMW BHD 630–230
Large tooling package
Maximum turning diameter 1070 mm

X axis travel 1040 mm
Y axis travel 330 + 280 mm
Z axis travel 4150 mm

Spindle bore 230 mm
Machine length 11780 mm
Machine width 4970 mm
Machine height 4300 mm
Machine weight 60000 kg
