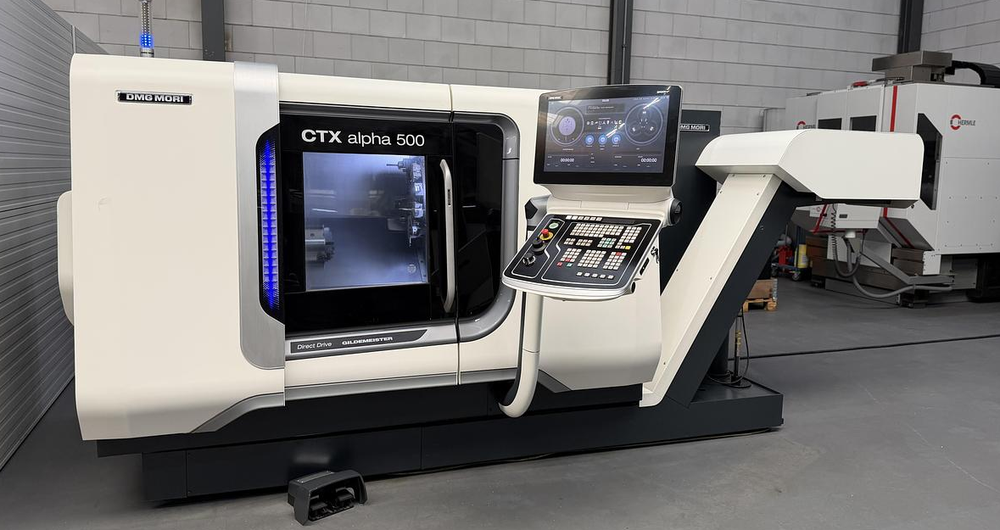

DMG Siemens 840D ShopTurn 3G (ERGOline + CELOS) 5,500 rpm MORI CTX ALPHA 500 V4 4 Axis

Axis Travel X: 210 mm
Axis Travel Y: 80 mm (+/- 40 mm)
Axis Travel Z: 525 mm
Rapid Traverse X/Y/Z: 30 / 22.5 / 30 m/min
C Axis: 300 rpm / 170 Nm / 0.001°

Control: Siemens 840D ShopTurn 3G (ERGOline + CELOS)
CELOS Software
Chip Conveyor
High Pressure Coolant
Foot Pedal Chuck Control
Tool Holders (Driven & Static)
Original Documentation

Swing Over Bed: 500 mm
Swing Over Slide: 290 mm
Max Turning Diameter: 240 mm
Max Turning Length: 500 mm
Spindle Bore: 73 mm

Spindle Speed: 0 – 5,500 rpm
Spindle Motor Power: 13 / 14 kW
Spindle Nose: FL 140h5

Chuck Size: 210 mm
Turret Type: VDI 30
Turret Positions: 12 (All Driven)

Machine Weight: 4,300 kg
Machine Dimensions: 4447 x 2378 x 1808 mm
