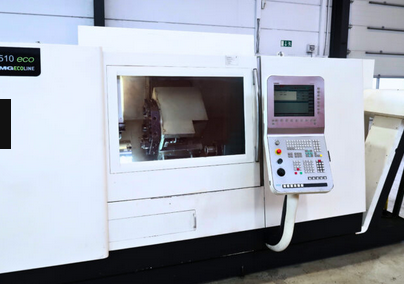

DMG SINUMERIK 810D with ShopTurn 3250 rpm MORI CTX 510 eco V3 2 Axis

X-axis travel: 300 mm
Z-axis travel: 1050 mm
Turning length: 1050 mm
Max. turning diameter: 465 mm
Swing over bed: 680 mm
Swing over cross-slide: 465 mm
Bar work capacity: 90 mm
CNC controller: SINUMERIK 810D with ShopTurn
Number of tool slots: 12 (6 driven)
Driven tool speed: 4000 rpm
Spindle speed: 3250 rpm
Spindle drive power: 33/22 kW (40%/100% DC)
Spindle bore: 102.5 mm
Spindle nose: Flat flange (220h5)
Maximum torque: 420 Nm (100% DC)
Tailstock travel: 850 mm
Tailstock holder: MK5
Part catcher
Work area light
Foot switch for chuck or collet system
3 radial rotary tools included
3 axial rotary tools included
12 fixed tools included
Spindle working time: 72059 hours
Rated power: 50 kVA
Machine length: 5300 mm
Machine width: 2230 mm
Machine height: 2010 mm
Machine weight: 8100 kg
