Doosan CNC (FANUC I SERIES CNC COLOR CONTROL) 2,000 RPM DN SOLUTIONS PUMA 4100LMB 3 Axis

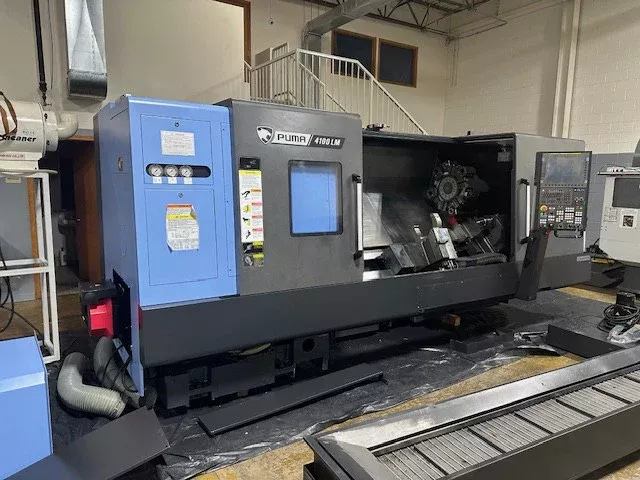

DN SOLUTIONS PUMA 4100LMB
Year: 2023

Swing Over Bed 31.1"
Machining Length 79.8"
Distance Between Centers 84.7"
Distance Between Spindles 0"
Chuck Size 1 15"
Spindle Nose 1 A2 - 11
Spindle Bar Capacity 1 4.6"
Turning Diameter, Shaft Diameter 22"
Spindle Speeds 1 2,000 RPM
Spindle Horsepower 1 50 hp
Spindle Bore Diameter 1 5.2"
X - Axis Travel 14.3"
Z - Axis Travel 84.8"
C - Axis Travel 1 0°
Rapid Traverse Rate - X1 630 in/min.
Rapid Traverse Rate - Z1 787 in/min.
Gear Ranges 2
Turret Configuration 1 12
Turret Rotary Tool Spindle Speed 1 4,000 RPM
Turret Rotary Tool Horse Power 1 14.8 hp
Tailstock Quill Diameter 4.7"
Tailstock Taper MT 6
Tailstock Quill Travel 4.7"
Programmable Tailstock YES
Tailstock Travel 80.7"
# Axis 2
Bar Capacity 4.6"
Tailstock 'Yes'
Sub Spindle 'No'
Control CNC (FANUC I SERIES CNC COLOR CONTROL)
Weight 0.00

DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
TOOL PRESETTER
SMW SLU-4-ZS HYDRAULIC STEADY REST (9.68" CAPACITY)
PROGRAMMABLE TAILSTOCK
.001 C-AXIS INDEXING
(2) I. D. ROTARY HEADS
(2) O. D. ROTARY HEADS
SPINDLE CHILLER
CUSTOM MACRO
CHIP CONVEYOR
1129 CUTTING HOURS
FANUC SERIES I CNC CONTROL
AUTOMATIC TOOL SETTER
SMW SLU-4-ZS HYDRAULIC STEADY REST (9.68'' CAPACITY)
.001 C-AXIS SPINDLE INDEXING
ROTARY TOOLS 4000 RPM
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
