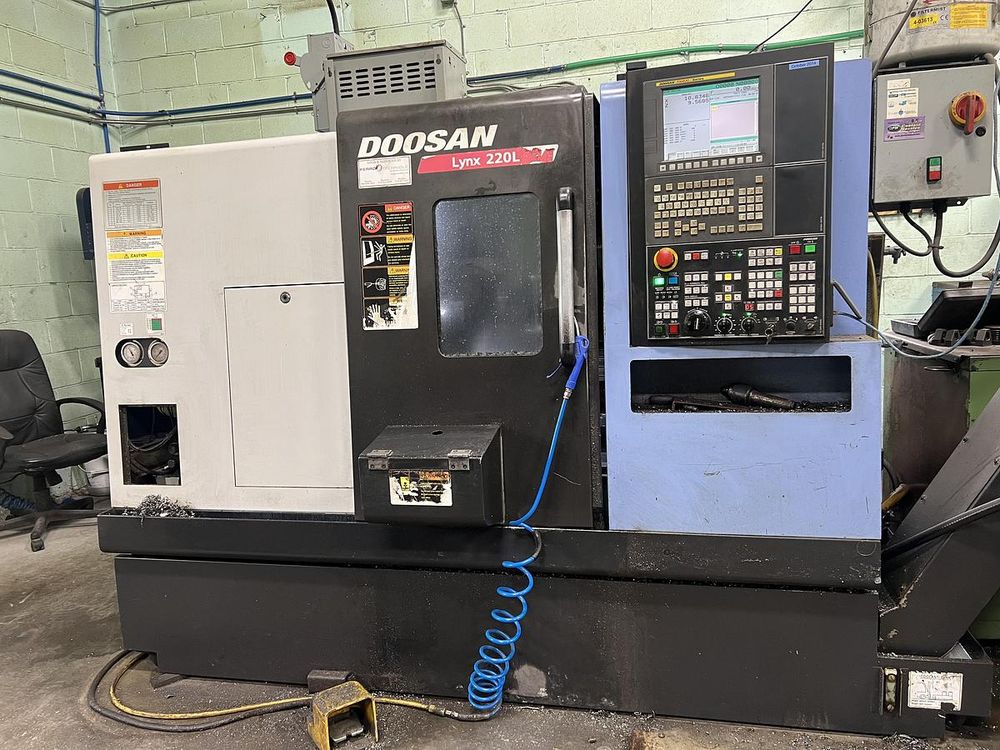

Doosan Fanuc 0iD / 32iA 4,000 RPM LYNX 220LC 2 Axis

X-Axis Travel: 175 mm
Z-Axis Travel: 330 mm
Swing Over Bed: 510 mm
Swing Over Saddle: 290 mm
Recommended Turning Diameter: 210 mm
Maximum Turning Diameter: 320 mm
Maximum Turning Length: 305 mm
Bar Capacity: 65 mm
Main Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Spindle Bearing Diameter: 110 mm
Spindle Through Hole Diameter: 76 mm
Turret Tool Stations: 12
OD Tool Size: 25 mm
Boring Bar Diameter: 40 mm
Tailstock Quill Diameter: 65 mm
Tailstock Taper: MT#4
Tailstock Quill Travel: 80 mm
Rapid Traverse (X/Z): 30 / 36 m/min
CNC Control: Fanuc 0iD / 32iA
Chip Conveyor
Coolant Tank
Chiller
Complete Manuals
