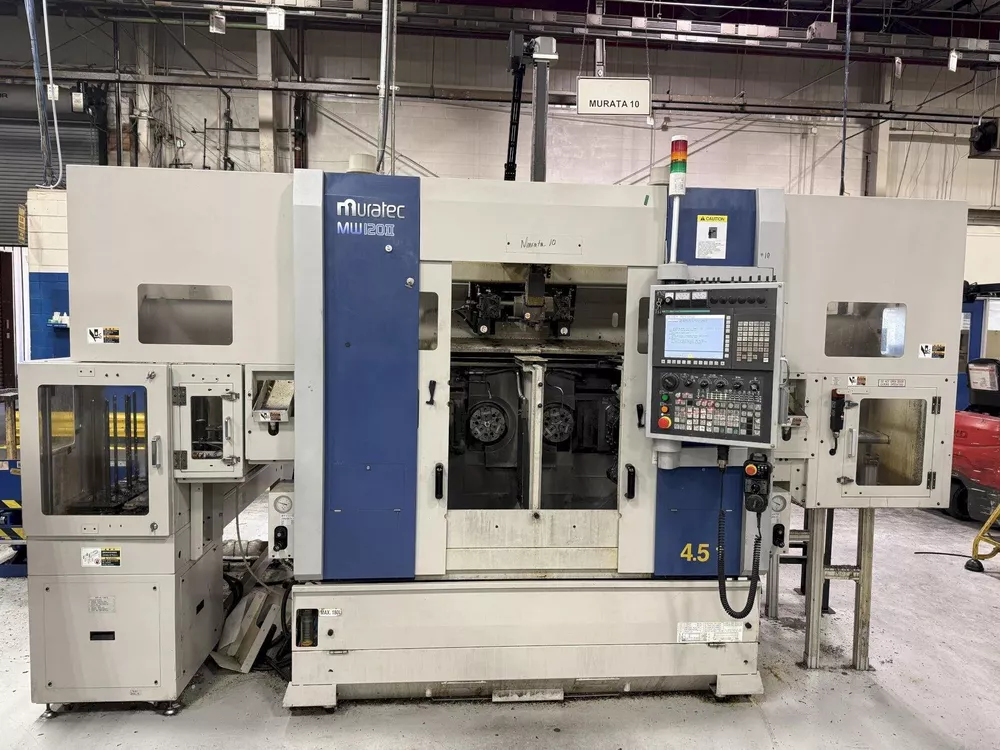

Muratec Fanuc i Series 4,500 RPM MW120 2 Axis

Swing: 11.61"
Turning Diameter: 8"
Max Turning Length (with Loader): 2.95"
Max Turning Length (without Loader): 5.71"
Chuck Size: 8"
X Axis Travel: 5.12"
Z Axis Travel: 5.7"
Spindle Nose: A2-5
Spindle Speed: 4,500 RPM
Live Tooling: No
Tailstock: No
Y Axis: No
Turret Capacity: 2 Turrets x 8 Stations
CNC Control: Fanuc i Series

Axis: 4

Machine Weight: 10,000 lbs
Fanuc/Muratec CNC Control
Collet Chuck (8" Chuck Capacity)
Twin Spindle
Dual 8 Position Turrets
Gantry Loading System (Single Gantry)
(2) 2-Axis Robots
Rear Discharge Chip Conveyor
Max Gantry Capacity: 6.6 lbs per part
