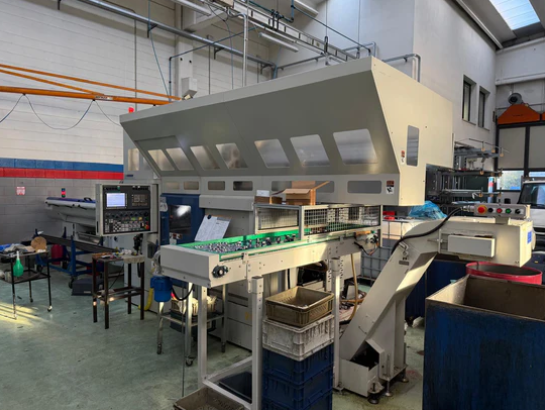

Muratec FANUC CNC control MT 100

X axis travel 150 mm
Y axis travel ±30 mm
Z axis travel 620 mm
Back spindle stroke 680 mm
Rapid traverse X 24 m/min
Rapid traverse Y 12 m/min
Rapid traverse Z 40 m/min

C axis
Electronic handwheel
Coolant system
FANUC CNC control

Swing diameter 190 mm
Maximum bar diameter 51 mm

Main spindle speed 0–6000 rpm
Back spindle speed up to 6000 rpm
Spindle motor power 11 / 7.5 kW
Spindle nose JIS A2-5

Driven tool speed 6000 rpm
Driven tool motor power 2.2 kW

Two spindles
Two turrets
Turret positions 15 (upper turret)
Turret positions 15 (lower turret)

Machine weight approx. 8000 kg
Overall length 4120 mm
Overall width 2130 mm
Overall height 2815 mm
IEMCA BOSS 552 bar feeder
Chip conveyor
Set of collets
Set of toolholders
