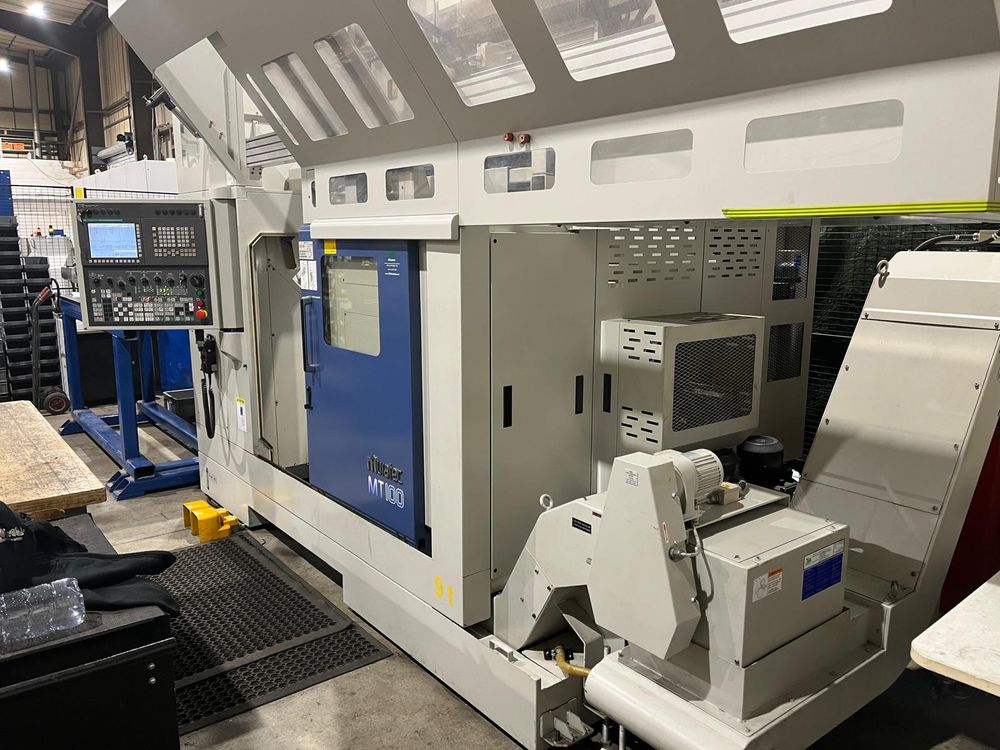

Muratec LNS Alpha SL65-S Barfeed. G-Tech Fanuc CNC Control 6000 rpm Murata MT100 2 Axis

MURATEC Murata MT100
Year 2016

CNC Lathe with Sub Spindle, Upper & Lower Turrets
LNS Alpha SL65-S Barfeed. G-Tech Fanuc CNC Control
Maximum swing 410mm .
Maximum turning length 620mm.
Maximum turning dia. 210mm.
Maximum Spindle speed 6000 rpm on both main spindle and sub spindle.
Spindle capacity 51mm.
15 station upper & lower turrets.
Y axis on both turrets (+/- 30mm).
Driven tooling on both turrets in all positions. 6000 rpm.
Driven tooling power 8kW.
Kitagawa BR06 170mm dia.
3 Jaw powered chuck fitted to main spindle.
2 Collet Chucks.
FX4000 Filtermist.
Swarf conveyor.
LNS Alpha SL65-S Multifeed Barfeed.
Overhead gantry.
Toolsetter for both turrets.
Machine dimensions – See image attached.
Approximate weight 9,000kg.
