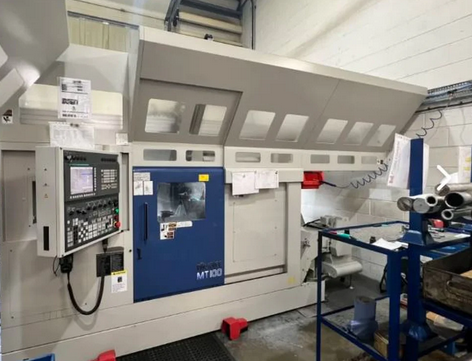

Muratec MURATEC - FANUC CNC 6000 t/min stepless MT 100 3 Axis

X axis travel upper turret: 150 mm
Y axis travel upper turret: ±30 mm
Z axis travel upper turret: 620 mm
X axis travel lower turret: 150 mm
Y axis travel lower turret: ±30 mm
Z axis travel lower turret: 620 mm
Rapid traverse X: 24 m/min
Rapid traverse Z: 40 m/min
Rapid traverse Y: 12 m/min
C axis
Control: MURATEC - FANUC CNC
Driven tools turret power: 2.2 kW
Main spindle speed: 0–6000 t/min stepless
Back spindle speed: 6000 t/min
Back spindle stroke: 680 mm
Spindle motor: 11 / 7.5 kW
Number of turning spindles: 2
Number of turrets: 2
Number of positions turret 1: 15
Number of positions turret 2: 15
Max bar diameter: 51 mm
Swing diameter: 190 mm
Spindle nose: JIS A2-5 mm
Weight: 8000 kg
Overall dimensions L x W x H: 4120 x 2130 x 2815 mm
Accessories: HAINBUCH SK52BZIG collets
Accessories: FILTERMIST FX4002 oil-mist extractor
Accessories: LNS ALPHA SL65 S bar feeder
Accessories: Handwheel electronic
Accessories: Chip conveyor
Accessories: Foot pedal
Accessories: Set of toolholders
Accessories: Measuring arm Renishaw
Accessories: Coolant system
