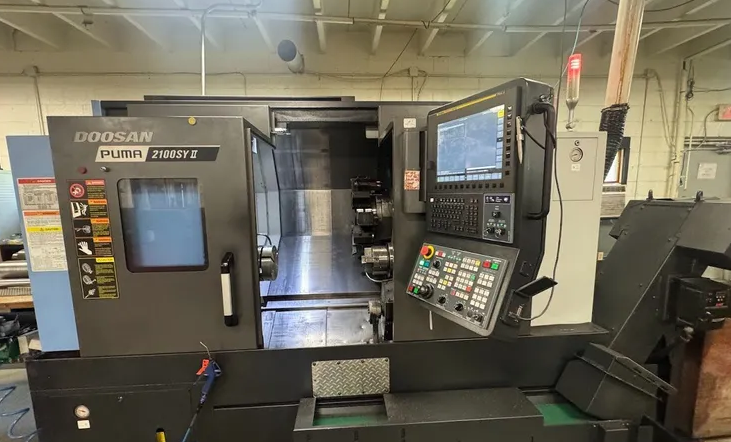

Doosan Control FANUC Oi-Plus with iHMi Touch Screen 5000 RPM PUMA 2100SY II 3 Axis

X-Axis Travel 10.2"
Z-Axis Travel 23.2"
Y-Axis Travel 4.13" (±2.065")

Swing 30.7"
Swing Over Cross Slide 24.8"
Max Turning Diameter 19.98"
Max Machining Length 20.47"
Distance Between Main and Sub Spindle Noses 33.46"

Main Spindle Speed 5,000 RPM
Main Spindle Nose A2-6
Main Spindle Draw Tube ID 2.68"
Main Spindle Bore Diameter 2.99"
Main Spindle Motor 30 HP
Main Spindle Torque 264 ft-lb

Sub Spindle Travel 23.2"
Sub Spindle Guideway Span 13.2"
Sub Spindle Speed 6,000 RPM
Sub Spindle Nose A2-5
Sub Spindle Draw Tube ID 1.968"
Sub Spindle Bore Diameter 2.44"
Sub Spindle Motor 20 HP
Sub Spindle Torque 98 ft-lb

C-Axis Main Spindle Minimum Programmable Angle 0.001 deg
C-Axis Main Spindle Rapid Traverse Rate 200 RPM
C-Axis Sub Spindle Minimum Programmable Angle 0.001 deg
C-Axis Sub Spindle Rapid Traverse Rate 200 RPM
C-Axis Sub Spindle Repeatability ±0.006 deg
C-Axis Sub Spindle Positioning Accuracy 0.0083 deg

Chuck Size Main Spindle 8"
Chuck Size Sub Spindle 6"
Turret Tool Stations 12
Turret Index Positions 24
Turret Tool Holder Type BMT-55
Turning Tool Shank Size 1.0"
Boring Bar Diameter 1.5"
Boring Bar Diameter Sub Spindle 1.0"
Turret Index Time 0.15 sec
Turret Clamping Force 13,263 lb

Rotary Tool RPM 5,000
Rotary Tool Motor 7.5 HP
Rotary Tool Torque 34.7 ft-lb
Rotary Tool Collet Type ER 25

Milling Collet Capacity 1/8" to 5/8"
Max X-Axis Tool Length 3.8"
EZ Guide i Conversational Programming
Chip Conveyor
High Pressure Coolant System
4 Live Tool Holders (1 Right Angle, 1 Dual-Sided Right Angle, 2 Straight)
Programmable Parts Catcher
Parts Conveyor with Barfeed Interface
Machine Dimensions 134.5" x 75"
Machine Weight 13,500 Lbs
