Doosan Control: Fanuc Series I CNC 3,500 rpm Puma GT2600M CNC Lathe with Milling 3 Axis

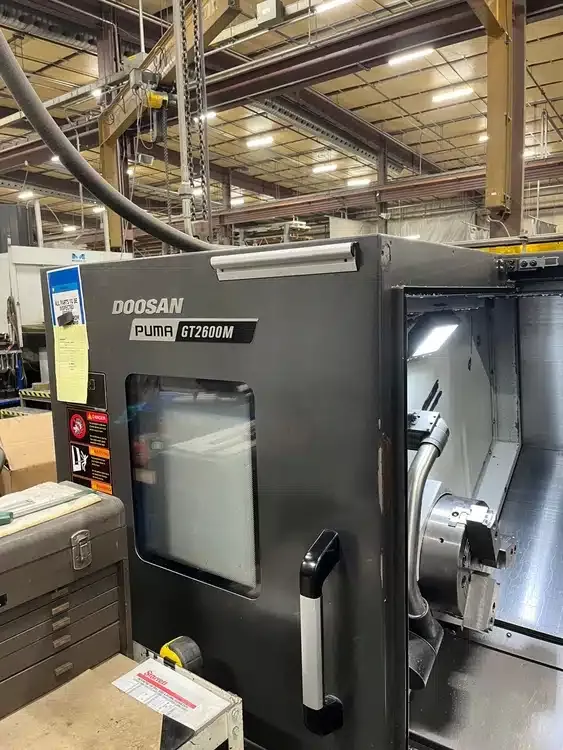

DOOSAN Puma GT2600M CNC Lathe with Milling
Year: 2017

Swing over bed: 24.8”
Turning diameter / shaft diameter: 16.1”
Machining length: 25.9”
Distance between centers: 27”
Chuck size: 10”
Spindle nose: A2-8
Spindle bore diameter: 3.9”
Bar capacity: 3.2”

Axis Travel & Speed:
X-axis travel: 10.4”
Z-axis travel: 26.8”
C-axis travel: 360°
Rapid traverse rate – X: 945 in/min
Rapid traverse rate – Z: 1,181 in/min
Rapid traverse rate – C: 220

Spindle & Turret:
Spindle speeds: 3,500 rpm
Spindle horsepower: 30 hp
Spindle torque: 459 Nm
Turret configuration: 12 stations
Rotary tool spindle speed: 5,000 rpm
Rotary tool spindle horsepower: 7.4 hp

Tailstock:
Tailstock travel: 26.8”
Tailstock quill travel: 3.9”
Tailstock quill diameter: 3.9”
Tailstock taper: MT 5
Programmable tailstock: Yes

Control & Features:
Control: Fanuc Series I CNC
Tool presetter
Chip conveyor
10” 3-jaw hydraulic chuck
Hydraulic chuck clamp confirmation
Signal tower
Programmable body and quill tailstock
USB & Ethernet ports for DNC operation
