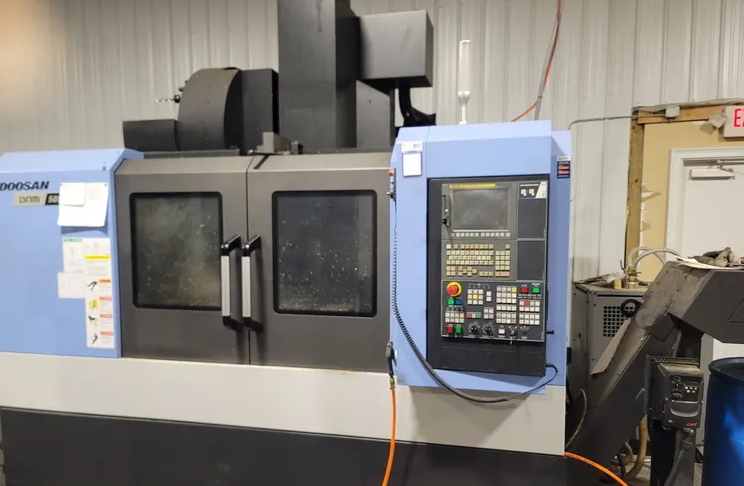

Doosan DNM 500II 3 Axis

X-axis travel 40"
Y-axis travel 21.2"
Z-axis travel 20.1"
Table loading area 47.2" x 21.2"
Allowable table load 1,764 lbs
Table T-slot spacing x width (4) 4.92" x .71"
Spindle nose to table top 5.9" to 26"
Column to spindle center 23.0"

Fanuc CNC control
Through-spindle coolant
1000 PSI high-pressure coolant
Chip conveyor

Spindle speed 12,000 rpm
Spindle speed (alt. spec) 8,000 rpm
AC spindle motor 25 HP
AC spindle motor (15-min rating) 20 HP
Spindle torque (15-min rating) 154 ft-lbs
Spindle acceleration/deceleration 0–8000 rpm in 2.5 s / 8000–0 rpm in 2.6 s
Spindle taper CAT 40 Big Plus

30-tool automatic toolchanger
Tool shank CAT 40
Max tool diameter (adjacent empty) 3.1" / 4.9"
Max tool length 11.8"
Max tool weight 17.6 lbs

X rapid traverse 1,417 ipm
Y rapid traverse 1,417 ipm
Z rapid traverse 1,181 ipm
Cutting feedrate .04–590 ipm
Least command increment .0001"
X feed thrust (continuous) 1,290 lbs
Y feed thrust (continuous) 1,290 lbs
Z feed thrust (continuous) 2,820 lbs
Positioning accuracy ±.0002"
Repeatability ±.000080"

Machine height 106.3"
Floor space required 96.3" x 123"
Chip conveyor extension 44.3"
Machine weight 14,330 lbs

Power required 31 kVA
Voltage required 205–235 V / 3-phase
Coolant tank capacity 100 gallons
Lubrication tank capacity .36 gallons
Air required 80 psi / 8.83 cfm
