Doosan Doosan Fanuc 0i-MD controller 3500rpm GT2600M 2 Axis

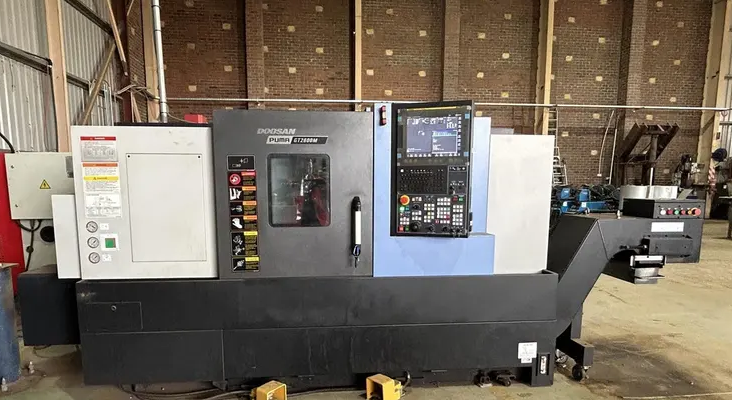

DOOSAN GT2600M
2022

630mm swing over bed
460mm swing over saddle
610mm turning length
410mm turning diameter
3600 (0.0010 resolution) C axis
220kg main spindle capacity
520kg shaft work capacity
81mm bar capacity
250mm hydraulic chuck diameter
3500rpm spindle speed
22kW spindle power
633Nm spindle torque
MT5 tailstock
100mm quill diameter
100mm quill travel
Programmable tailstock positioning
BMT 55 tool mounting
5000rpm live tool speed
5.5kW live tool power
47.1Nm live tool torque
12 station turret
25mm square tool capacity
40mm round tool capacity
ER25 live tool collet size
Eppinger Preci-Flex tooling system
Doosan Fanuc 0i-MD controller
10.4” colour LCD monitor
Rigid-synchronised tapping
Custom Macro B
Ethernet interface
RS232 interface
USB port
PCMCIA card slot
Graphical turning cycles
Graphical milling cycles
Full 3D simulation
G and M code assistance
3-jaw hydraulic power chuck
Chuck cleaning air blast
Eppinger rotary tool holders
Preci-Flex adapter set
Coolant system
Foot switches
Transformer
Full enclosure chip and coolant shield
Front door interlock
Hand tool kit
Automatic lubrication system
Operation manual
Maintenance manual
Programming manual
Parts diagrams
Hydraulic schematics
Electrical schematics
Ladder diagrams
Safety name plates
Risk assessment
Work light
Chuck open/close proximity switches
Side discharge chip conveyor
Hinged belt chip conveyor
Hydraulic auto tool setter
Coolant oil skimmer
7 bar high pressure coolant system
Barfeed interface
