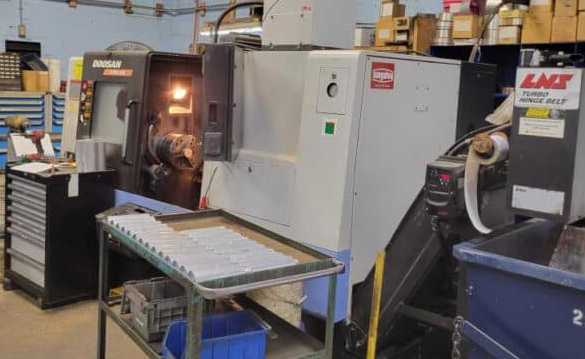

Doosan Doosan Fanuc I Series 3,500 RPM PUMA 240C 3 Axis

X-axis travel 9.5″
Z-axis travel 22.8″
X-axis rapid traverse rate 945 IPM
Z-axis rapid traverse rate 1,200 IPM
Control Doosan Fanuc I Series
Tool presetter
Tailstock
Parts catcher ready
Chip conveyor
Swing over bed 21.7″
Swing over carriage 15.4″
Between centers 26.3″
Maximum turning diameter 13.8″
Maximum turning length 21.6″
Spindle speed 35–3,500 RPM
Spindle nose A2-8
Draw tube I.D. 3.03″
Standard chuck through hole I.D. 3.03″
Spindle bore diameter 3.38″
Spindle motor 25 HP (30 min. rating)
Maximum spindle torque 324 ft-lbs (30 min. rating)
Standard chuck size 10″
Number of tools 12
10″ 3-jaw hydraulic chuck
Slant bed angle 45 degrees
