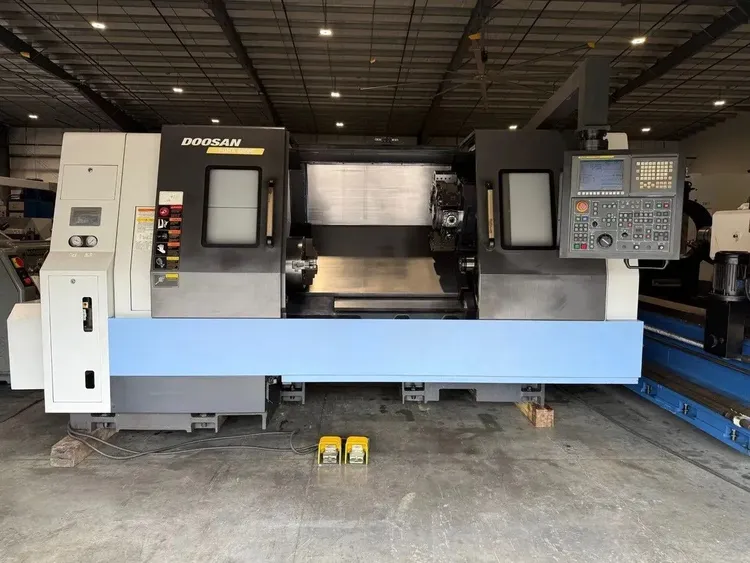

Doosan DOOSAN FANUC Series I CNC control 2000 rpm PUMA 400MB 3 Axis

X-axis travel 14.1′′
Z-axis travel 43.5′′
C-axis 0.001°
X-axis rapid traverse 629 in/min
Z-axis rapid traverse 708 in/min
DOOSAN FANUC Series I CNC control
Tool setter
Maximum turning diameter 22′′
Machining length 38.5′′
Distance between centers 44′′
Swing over bed 30.3′′
Chuck size 15′′
Spindle nose A2-11
Spindle bore 5.2′′
Bar capacity 4.6′′
Spindle speed 2000 rpm
Spindle motor 40 HP
Live tooling
Turret rotary tool speed 3000 rpm
Turret rotary tool motor 10 HP
Tailstock quill diameter 4.7′′
Tailstock taper MT6
Tailstock quill travel 39.4′′
Programmable tailstock
3 axes

15′′ 3-jaw hydraulic chuck
Chip conveyor
1 I.D. rotary head
2 O.D. rotary heads
Static holders
