Doosan Doosan Fanuc Series I CNC Control 6000 RPM LYNX 220LM 3 Axis

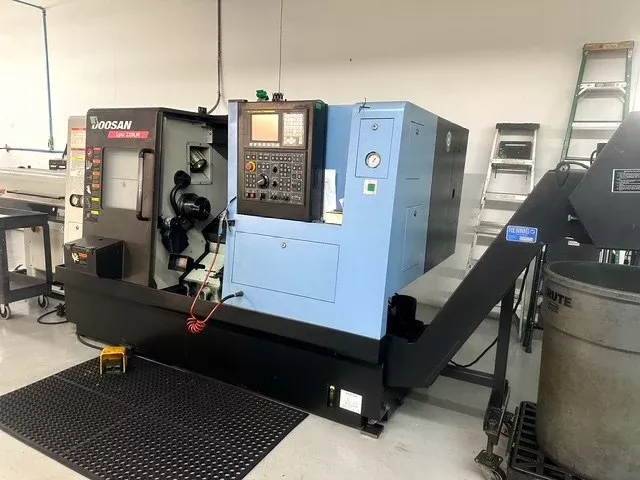

DOOSAN LYNX 220LM
Year: 2010


Swing Over Bed: 20.08″
Machining Length: 20.08″
Distance Between Centers: 0″
Distance Between Spindles: 0″
Chuck Size 1: 8″
Spindle Nose 1: A2-5
Spindle Bar Capacity 1: 2.01″
Turning Diameter / Shaft Diameter: 9.84″
Spindle Speeds 1: 6,000 RPM
Spindle Horsepower 1: 20 HP
Spindle Bore Diameter 1: 2.4″
X-Axis Travel: 6.9″
Z-Axis Travel: 21.6″
C-Axis Travel 1: 0°
Rapid Traverse Rate - X1: 1,181 in/min
Rapid Traverse Rate - Z1: 1,471 in/min
Rapid Traverse Rate - C: 400
Turret Configuration 1: 12
Turret Rotary Tool Spindle Speed 1: 6,000 RPM
Turret Rotary Tool Horse Power 1: 5 HP
Tailstock Quill Diameter: 2.53″
Tailstock Taper: MT 4
Tailstock Quill Travel: 3.15″
Programmable Tailstock: YES

Axis: 3
Bar Capacity: 2.01″
Tailstock: Yes
Live Tooling: Yes
Sub Spindle: No
Control: CNC (Fanuc)
Weight: 8,818 lbs

Equipped With (subject to buyer verification):
Doosan Fanuc Series I CNC Control
Tool Presetter
Parts Catcher
Chip Conveyor
3 Live Holders
Barfeed Interface
All Available Static Tool Holders
All Available Manuals
