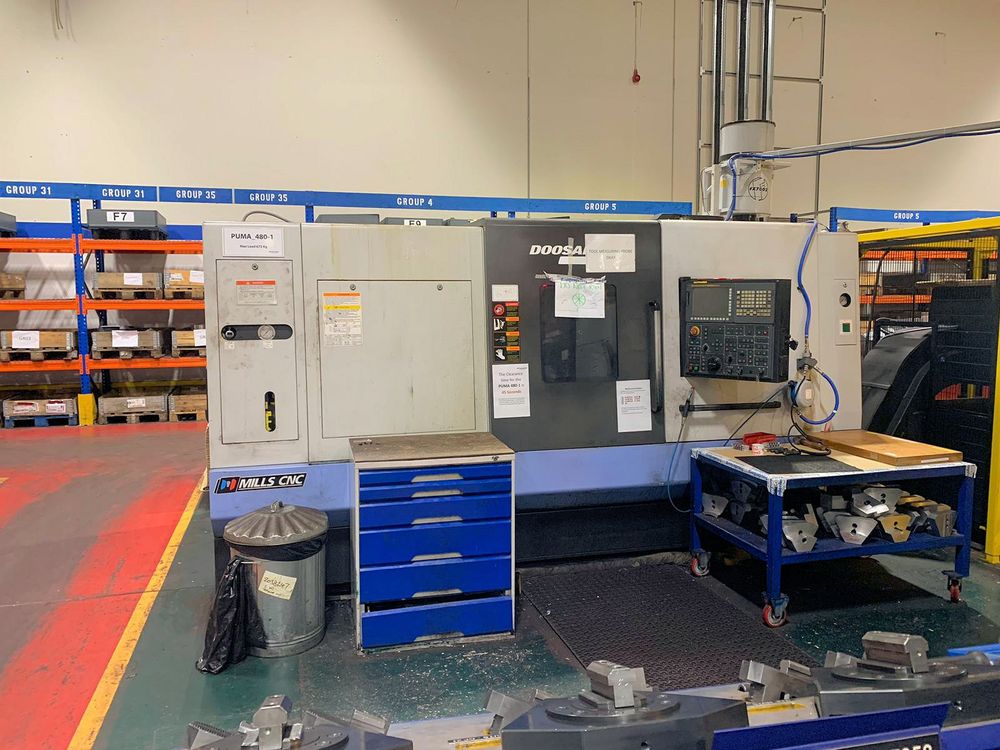

Doosan FANUC 1500 rpm Puma 480 2 Axis

Doosan Puma 480
2013

3 Jaw Chuck
Coolant
Interlocked guards
Low Volt Light
Swarf Conveyor
Tailstock
Tooling

Bar Capacity 165mm
Boring Bar Holder Diameter 80mm
Control FANUC
Machine Dimensions 4613 x 2050 x 2197mm
Machine Weight 10100kg
Maximum Cutting Diameter 650mm
Maximum Cutting Length 992mm
Rapid Feedrates XZ: 16 x 20 m/minute
Spindle Bore 181mm
Spindle Motor Power 45kW
Spindle Nose A1-15
Spindle Speed 1500 rpm
Swing 900mm
Swing over the Cross-slide 720mm
Tailstock Body Travel 120mm
Tailstock Quill Diameter 120mm
Tailstock Taper MT #6
Tool Size 32 x 32mm
Tooling Configuration 10 Station
X axis Travel 362mm
Z axis Travel 1105mm
