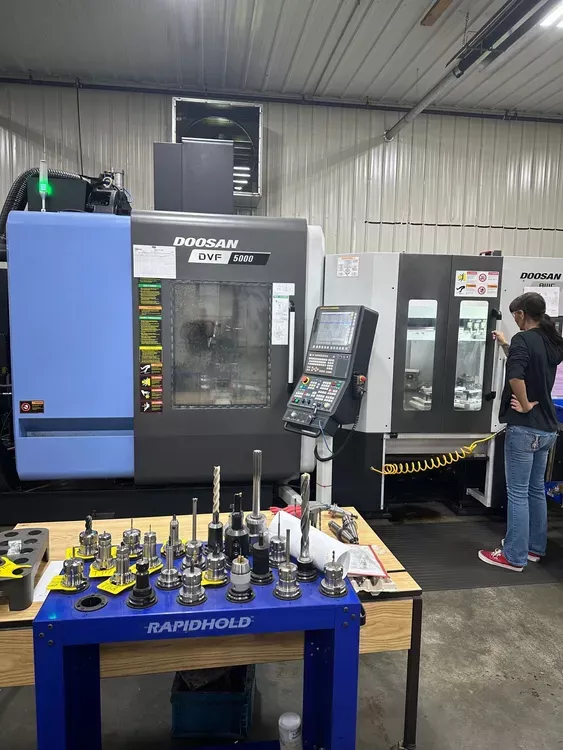

Doosan DVF 5000 5 Axis

DOOSAN DVF 5000
2022

CNC control Fanuc G-Tech-31B
Number of axes 5
X travel 24.6 in
Y travel 17.7 in
Z travel 15.7 in
Rapid traverse 1575 IPM
Rotary table size 19.7 in
Maximum spindle speed 18000 rpm
Automatic tool changer 120 tools
Spindle taper 40
Through spindle coolant
Maximum table load 882 lbs
Pallet shuttle system 12 pallets
Spindle power 30 hp
Machine dimensions 25 ft x 20 ft
Machine weight 16534 lbs
Fanuc 3i-M B5 control
12-position automatic workpiece changer
Chip conveyor LNS Super Fine Compact with variable speed drive and M-code
Mist collector
Probing system
5-axis trunnion table
Renishaw RMP600 spindle probe
Renishaw RTS TTP tool setter
Renishaw CAT40 tool setter
ChipBLASTER 1000 PSI coolant system
Coolant tank 100 gallons
Dual 5-micron bag filters
LNS FOX WS2-700 mist collector
Renishaw Axiset calibration artifact
Spindle probe calibration ring gauge 2 in ID
BK Mikro broken tool detection system
CAMPLETE TruePath software
Mobile Makro-Grip stamping unit
Makro-Grip stamping jaws for up to 45 HRc
Mounting bore hole covers 20 mm
Quick-Point plate 246x192x27 mm
Steel soft jaws for Profilo125
Profilo 125, length 160 mm
Makro-Grip base 125, jaw width 125 mm, length 160 mm
Hexagon wrench 15 mm
Mounting bores per dwg "45716-01 USA-2005-001"
Rego-Fix PowrGrip clamping unit
Lang plates
Vises
