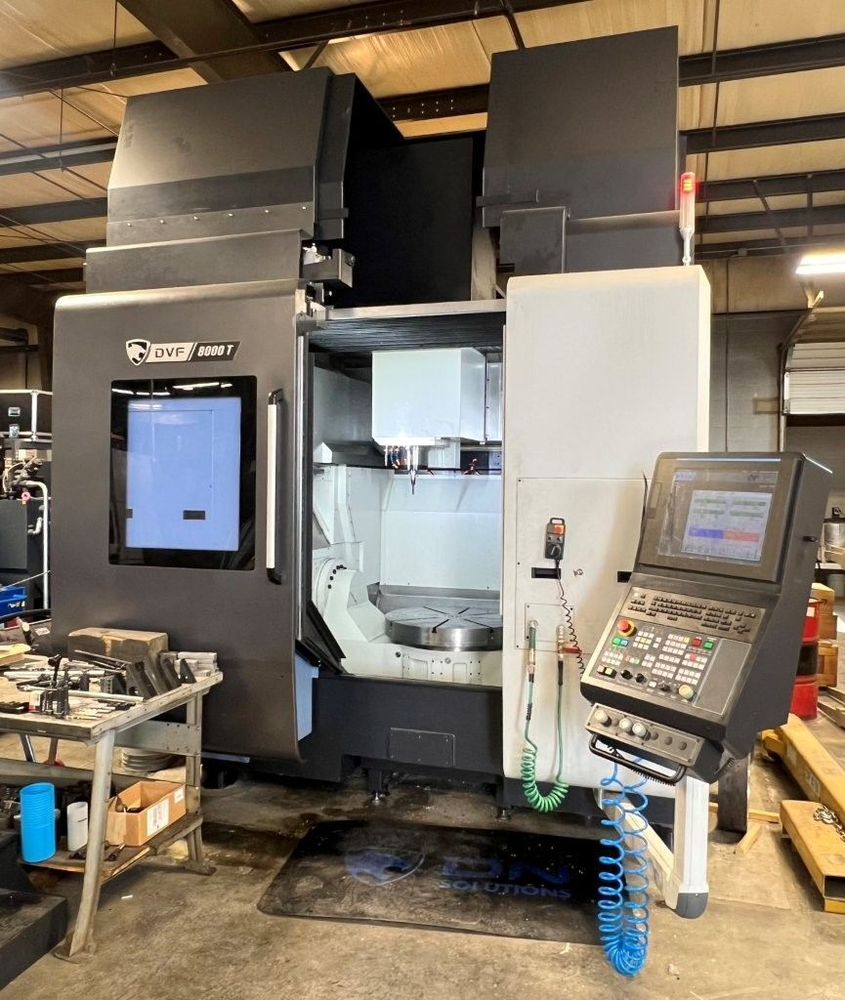

Doosan DVF 8000T 5 Axis

X axis travel 750 mm (29.52")
Y axis travel 785 mm (30.90")
Z axis travel 600 mm (23.62")
A axis travel +120° / -120°
C axis travel 360°

Table size 650 mm dia. x 600 mm (25.6" dia. x 23.6")
Max work piece diameter 840 mm (33.07")
Max work piece height 500 mm (19.685")
Max table load 1,000 kg (2,204 lbs)
Spindle nose to table top 110 mm to 710 mm (4.33" to 27.95")
Spindle speed 18,000 rpm
AC spindle motor (S6) 24 / 30 kW (32.2 / 40.2 hp)
Spindle torque (S6) 155 Nm (114.4 ft-lbs)
Number of tools 60
Tool shank HSK63A
Height 122"
Floor space 146" x 97"
Machine weight 32,000 lbs
Turning spindle speed 600 rpm
Tool positions 120

Simultaneous 5-axis vertical machining center with turning function
Control Doosan CUFOS (Fanuc)
Rotary table 31.5" (800 mm)
Renishaw probe-ready
Through-spindle coolant
Through-spindle air
Chip conveyor rear discharge
Spindle chiller
Coolant chiller
AICC II 600 block look ahead
Intelligent Kinematic Compensation software
Absolute glass scales X/Y/Z
Absolute rotary encoders A and C axes
Spindle orientation
Rigid tapping
USB port
